5 - Removal and Re-installation

5.33 How to Remove / Re-install the Power Supply


Prepare device for removing / reinstalling modules
Remove left side access door
With a partner move device to edge of work surface
Remove power supply
Reverse to re-install
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 15 minutes plus any sub-procedures
The power supply receives AC power from the AC power cord plugged in to the rear of the device, and
converts it to the power levels required by the embedded PC, mail logic board, and power controller. It
also reports power status and receive power-up and power-down commands from the power controller. It
is located in the rear left of the bottom deck of the device.
Removing and re-installing the power supply requires two people: First, both people
move the device, then one person keeps the device stable while the other removes the
power supply.

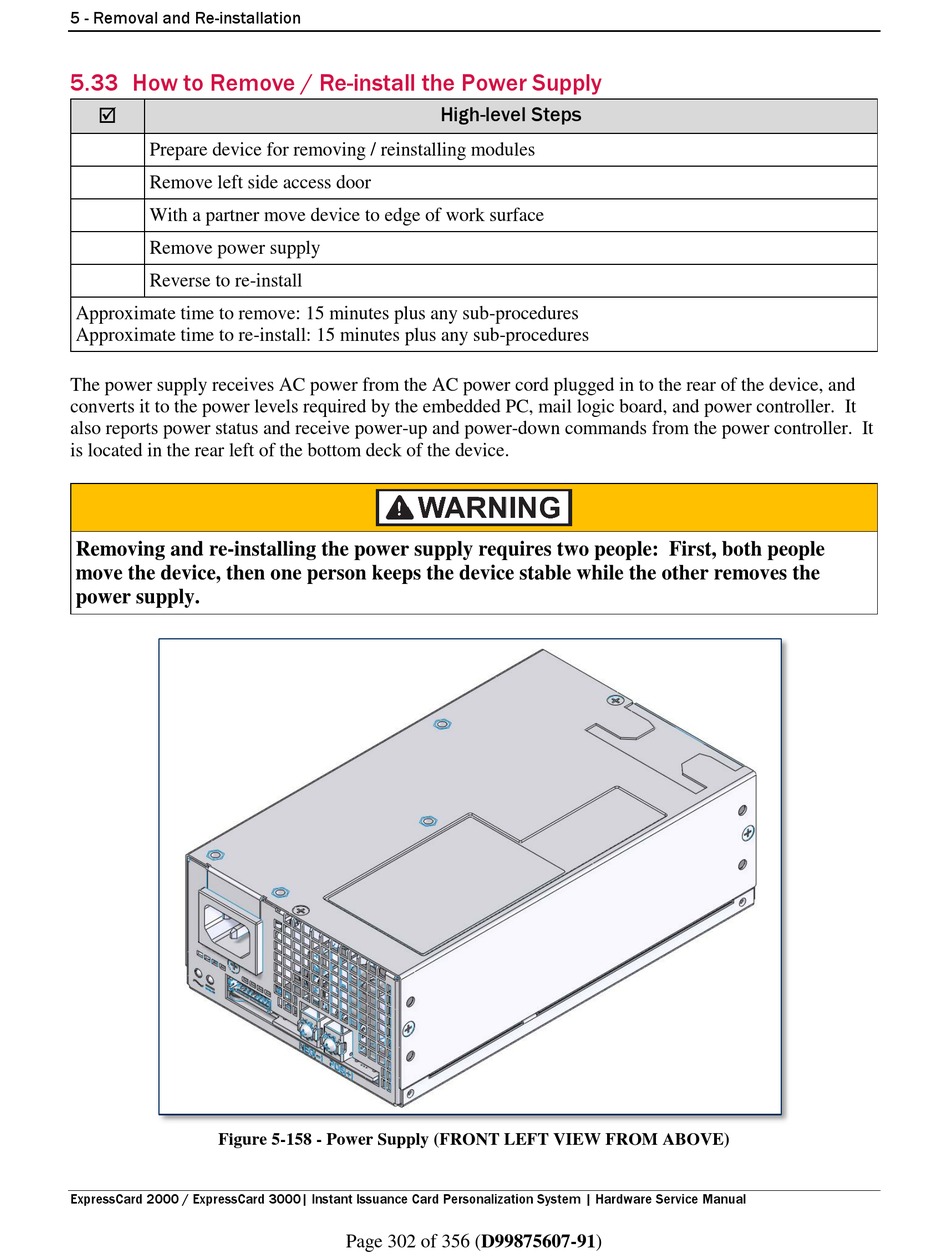

Figure 5-158 - Power Supply (FRONT LEFT VIEW FROM ABOVE)
