5 - Removal and Re-installation

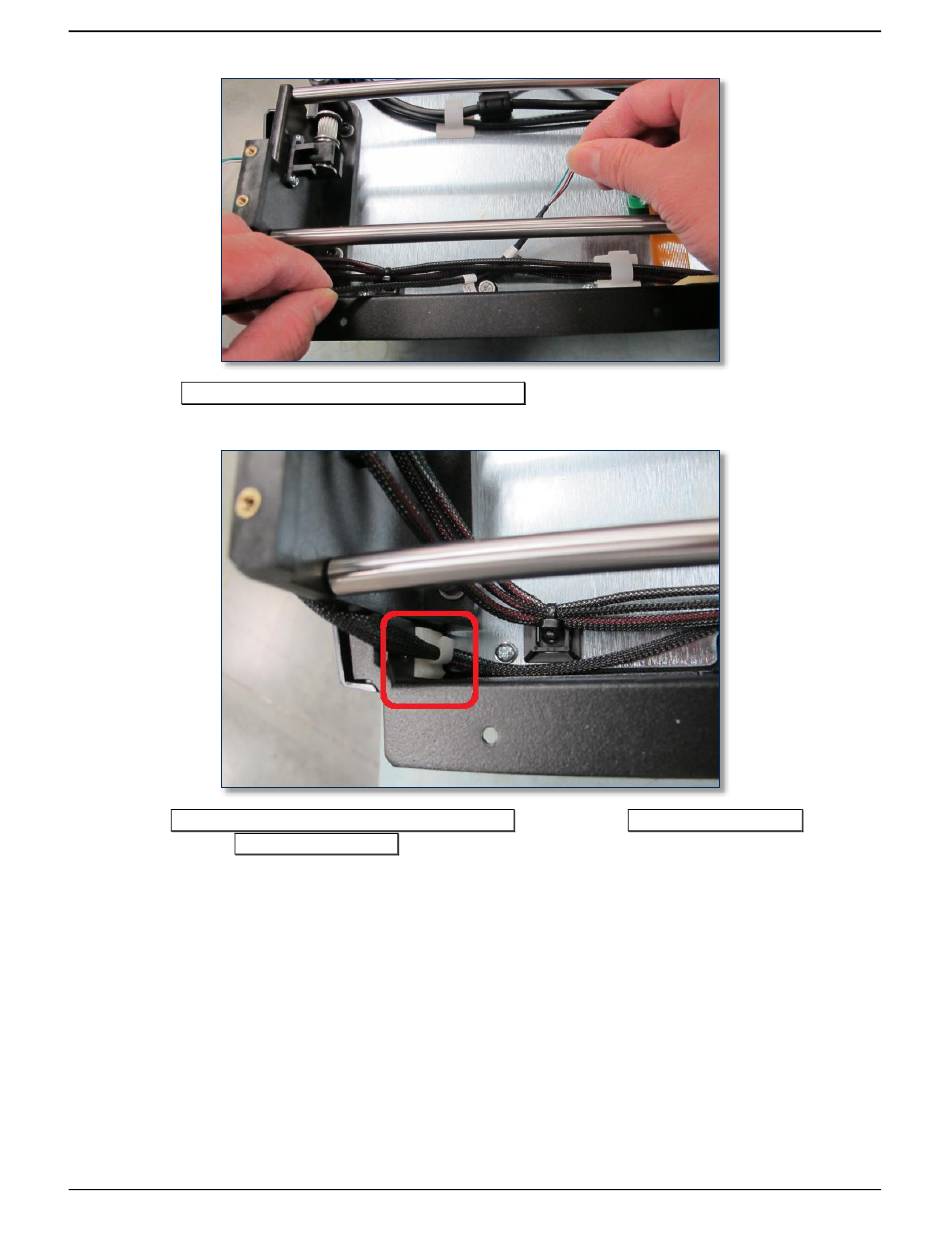

23) Route the
HOPPER SHUTTLE EXC HOME SENSOR
module and down through the cable clip in the front right corner of the device.
24) Plug the
HOPPER SHUTTLE EXC HOME SENSOR
connector on the
HOPPER SHUTTLE
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
cable into the
circuit board.
Page 133 of 356 (D99875607-91)
around the front plate of the hopper transport
J4 EXC HOME SENS
