3 - Preventive Maintenance Procedure (EC2000)

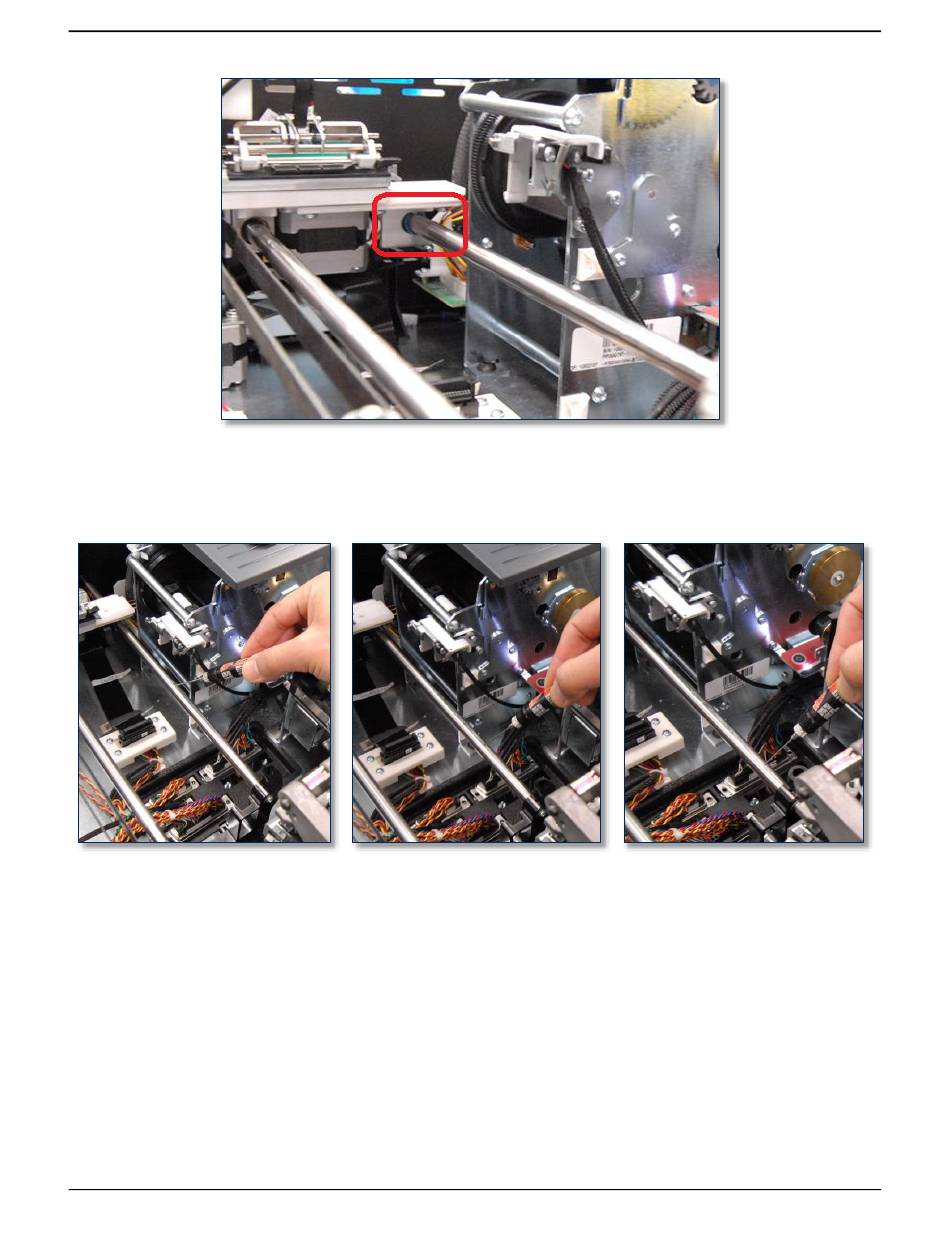

Figure 3-6 - XY Transport Shaft Near Image Printer (FRONT LEFT VIEW)
b) Shake the bottle of Tri-Flow lubricant and remove the cap.
c) Run a thin 3-4 inch long bead of Tri-Flow along the top of that one shaft.
Figure 3-7 - Run a Thin Bead of Tri-Flow Along the Top of the Shaft (TOP LEFT VIEW)
d) Use the drive belt to move the XY transport to the front of the device, then to the rear again to
spread the Tri-Flow along the length of the shaft (see section 2.8 How to Safely Move
Transports By Hand).
