5 - Removal and Re-installation

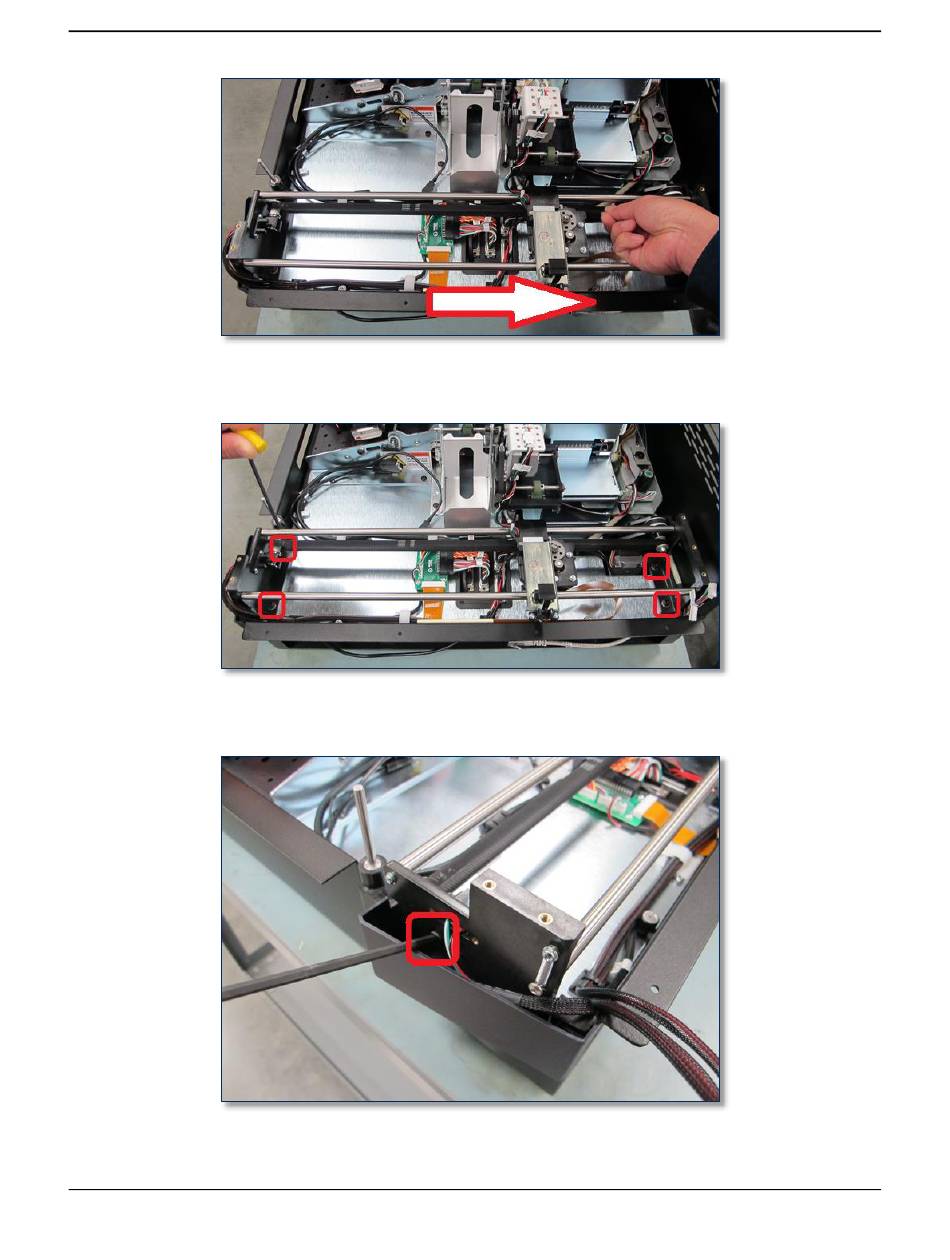

9) Use the 5/32" ball end hex wrench to remove the four screws and washers that hold the four corners
of the hopper module to the top deck plate, and set them aside for later use.
10) Find the belt tension screw on the front of the hopper module. Use the 5/32" hex wrench to loosen
the screw just until the belt is loose enough to slip off the geared pulleys.
11) Slip the hopper shuttle belt completely off the pulley near the rear of the device.
