Magtek ExpressCard 2000 Hardware Service Manual page 81

5 - Removal and Re-installation

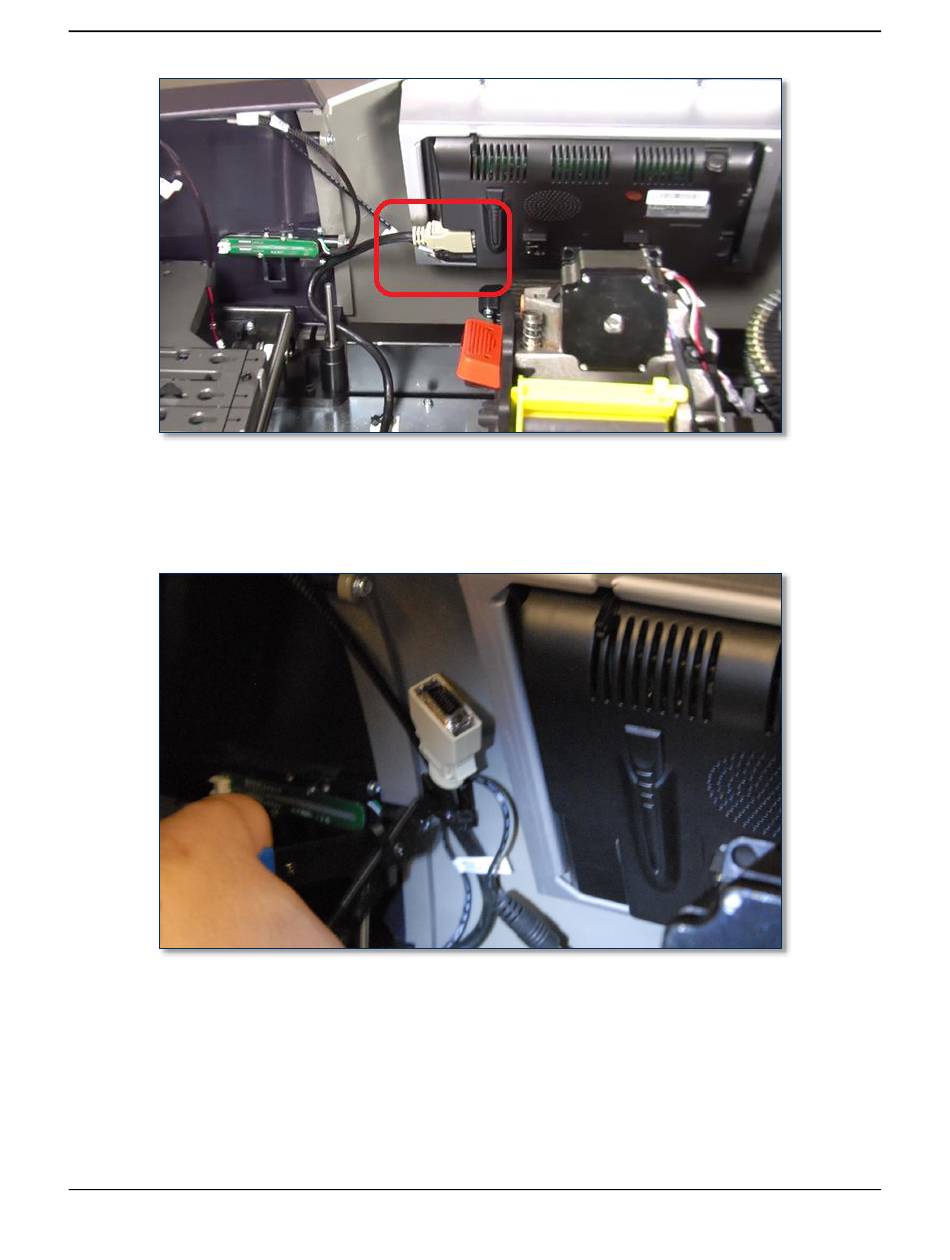

Figure 5-6 - Touchscreen VGA Cable and Power Cable (REAR VIEW)
10) If there are any cable ties anchoring the touchscreen cables to the cover, use the wire cutters or
diagonal cutters to cut the cable ties, and replace them when re-installing the cover. If the cables are
held to the case by a clip, unclip them now, and re-clip them when re-installing the cover.
Figure 5-7 - Touchscreen Power and VGA Cables (REAR VIEW)
11) Disconnect the Top Case Open sensor cable in the rear left corner of the device.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 81 of 356 (D99875607-91)
