5 - Removal and Re-installation

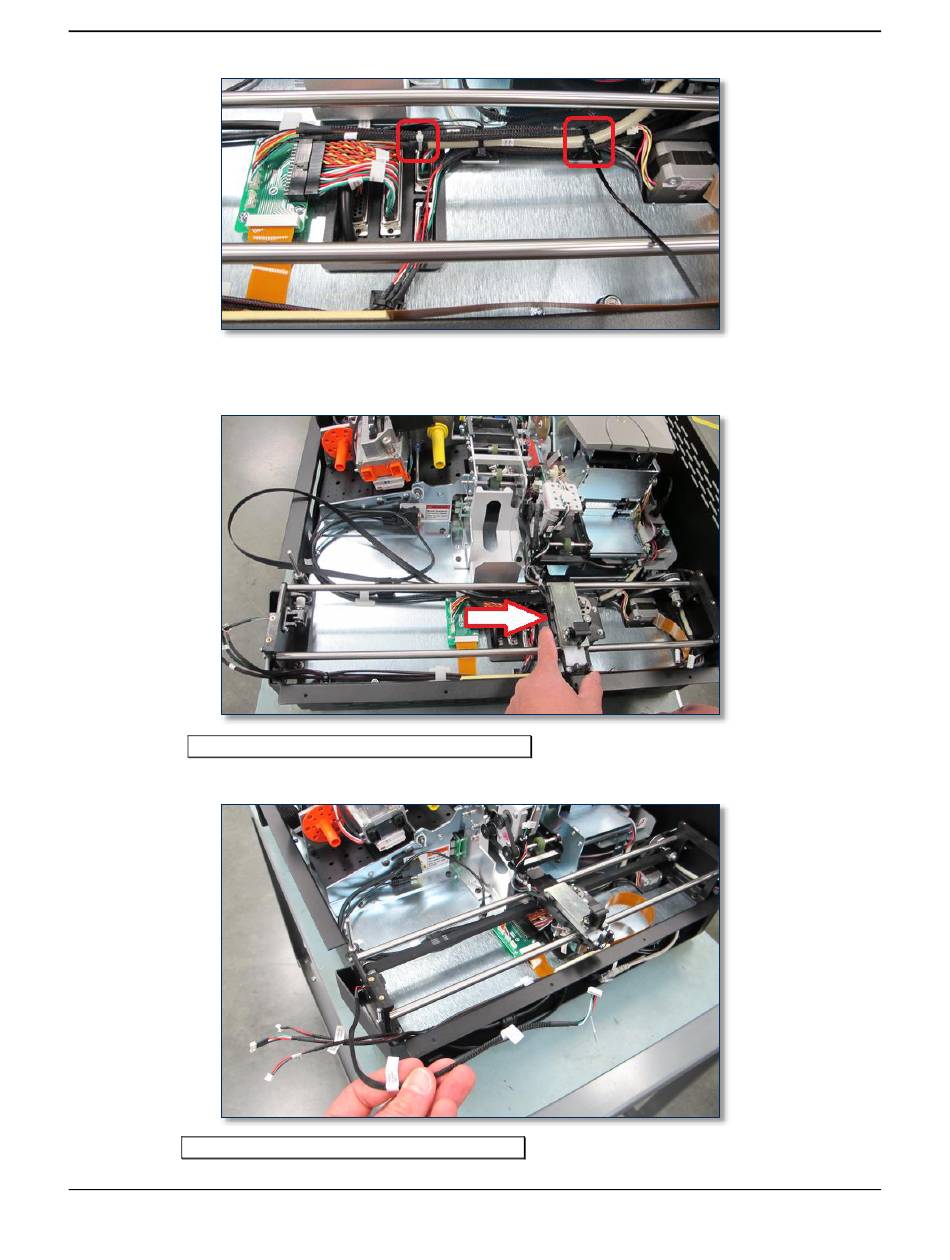

20) Gently push the hopper shuttle toward the rear of the device, past the connectors on the top deck
plate.
21) Locate the
HOPPER SHUTTLE EXC HOME SENSOR
module.
22) Route the
HOPPER SHUTTLE EXC HOME SENSOR
along the right side of the device.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 132 of 356 (D99875607-91)
cable attached to the front of the hopper
cable underneath the other cables that run
