5 - Removal and Re-installation

5.28 How to Remove / Re-install the Embedded PC

Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 15 minutes plus any sub-procedures
The embedded PC provides the user interface on the ExpressCard's touchscreen and connects to the Main
Logic Board (MLB) to communicate with sensors and motors within each of the device's modules. It is
located in the rear right of the lower deck ("tub") in the device, and is mounted to a tray that slides into
two tracks built in to the bottom of the lower deck.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual

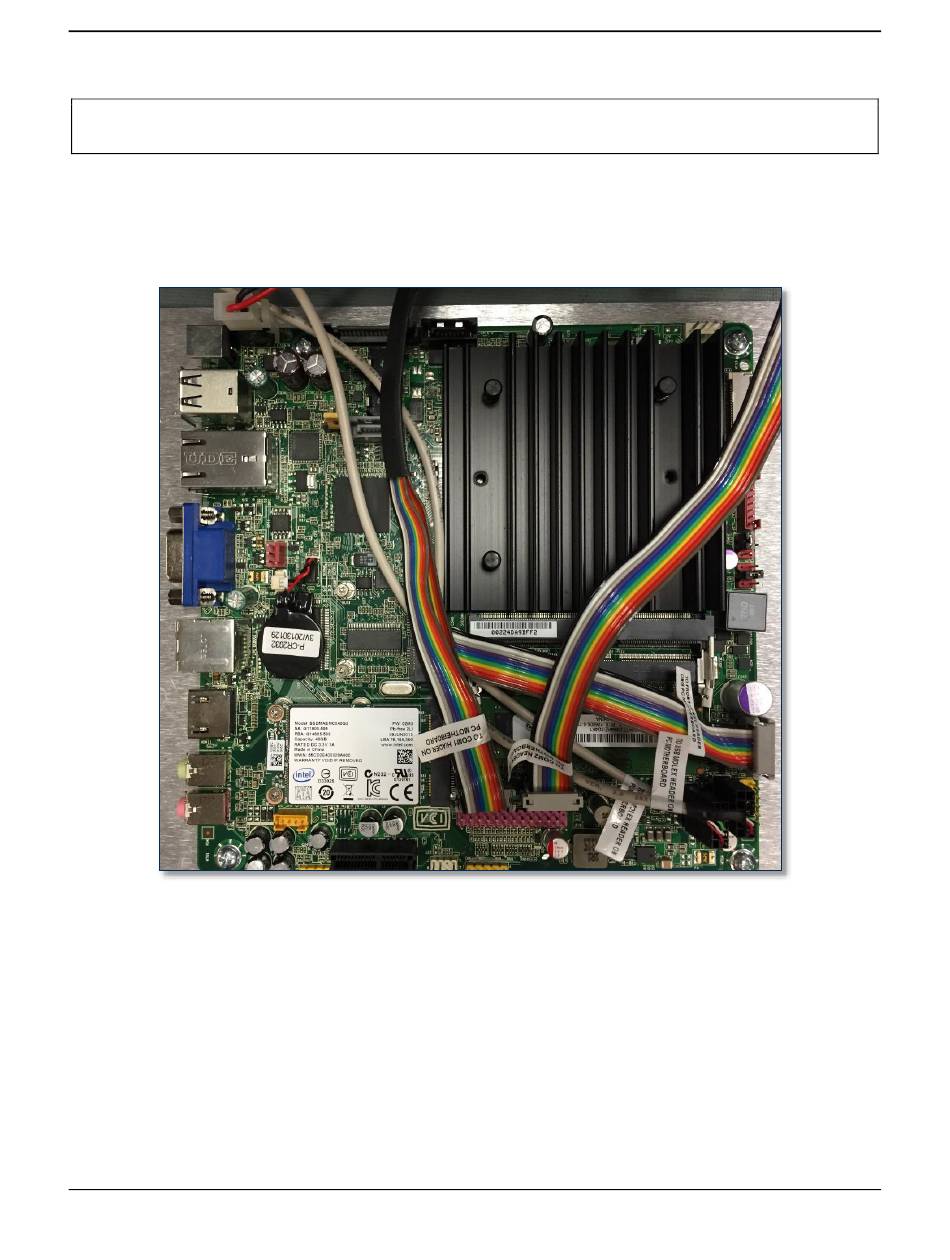

Figure 5-126 - Embedded PC (TOP VIEW FROM REAR)
