6 - Adjustments
6.8 How to Calibrate the Tipper Module
These steps may be necessary after installing a new tipper module or after updating software, firmware, or
drivers. Re-calibration may also be used to compensate for normal tipper platen wear.
6.8.1 Set Correct Calibrated Temperature
New tipper heaters and tippers come with a pre-calibrated temperature marked on the side of the heater.
To set the ExpressCard to use the calibrated temperature, follow these steps:

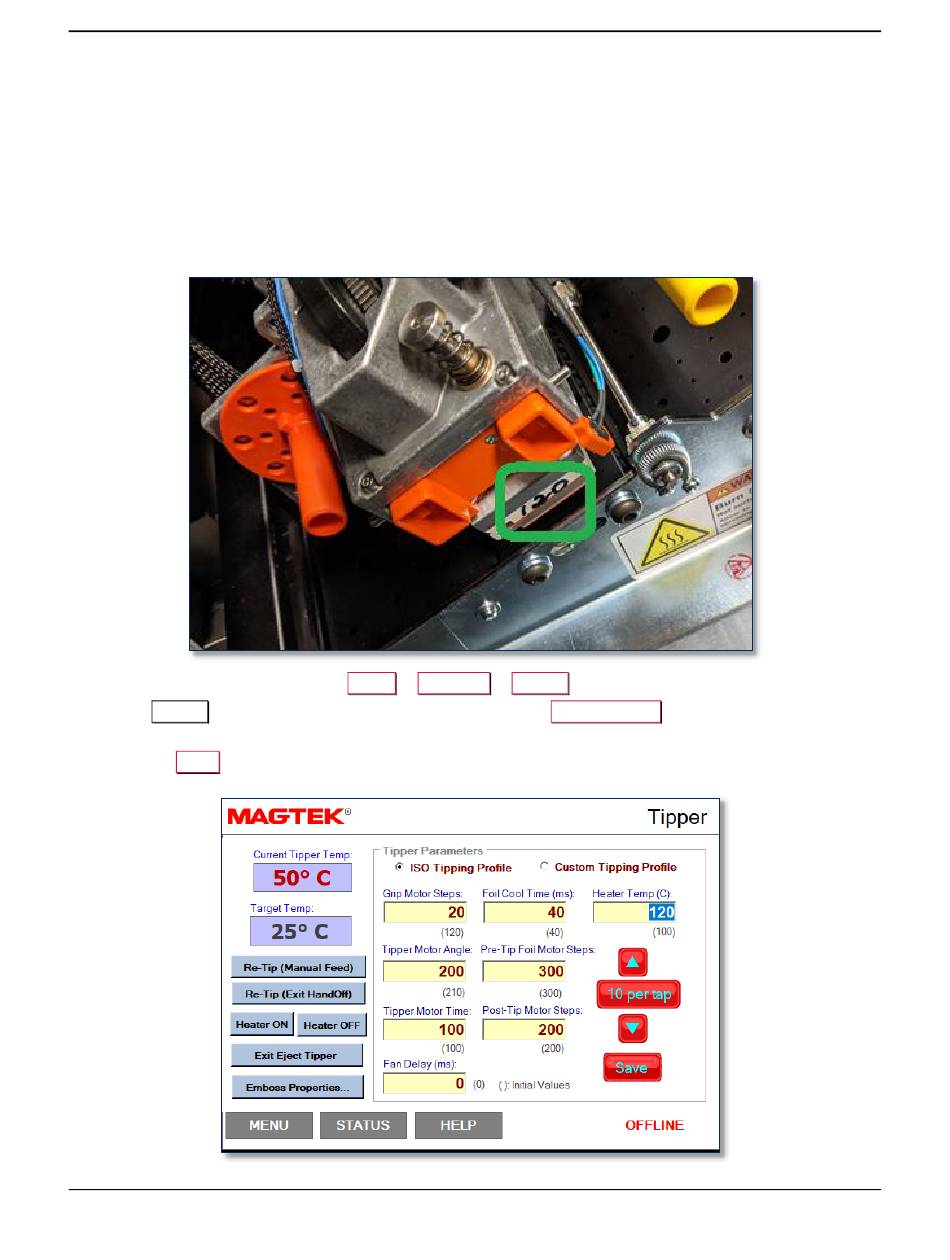

1) Look at the tipper heater on the right side of the tipper to find the calibrated temperature.
2) On the touchscreen, navigate to > > .
Menu Settings Tipper
3) In the page, use the on-screen buttons to fill in the field with the number
Tipper Heater Temp
written on the side of the heater.
4) Press the Save button.
