5 - Removal and Re-installation
5.13 How to Remove / Re-install the Image Printer Top Door Cover (EC2000
with ECP1)
Approximate time to remove: 2 minutes plus any sub-procedures
Approximate time to re-install: 4 minutes plus any sub-procedures
This section provides information for replacing the plastic cover and button on the image printer lid,
which occasionally must be replaced without replacing the entire image printer module. For instructions
on removing and re-installing the entire image printer module, see section 5.10 How to Remove / Re-
install the Image Printer Module (EC2000 with ECP1).

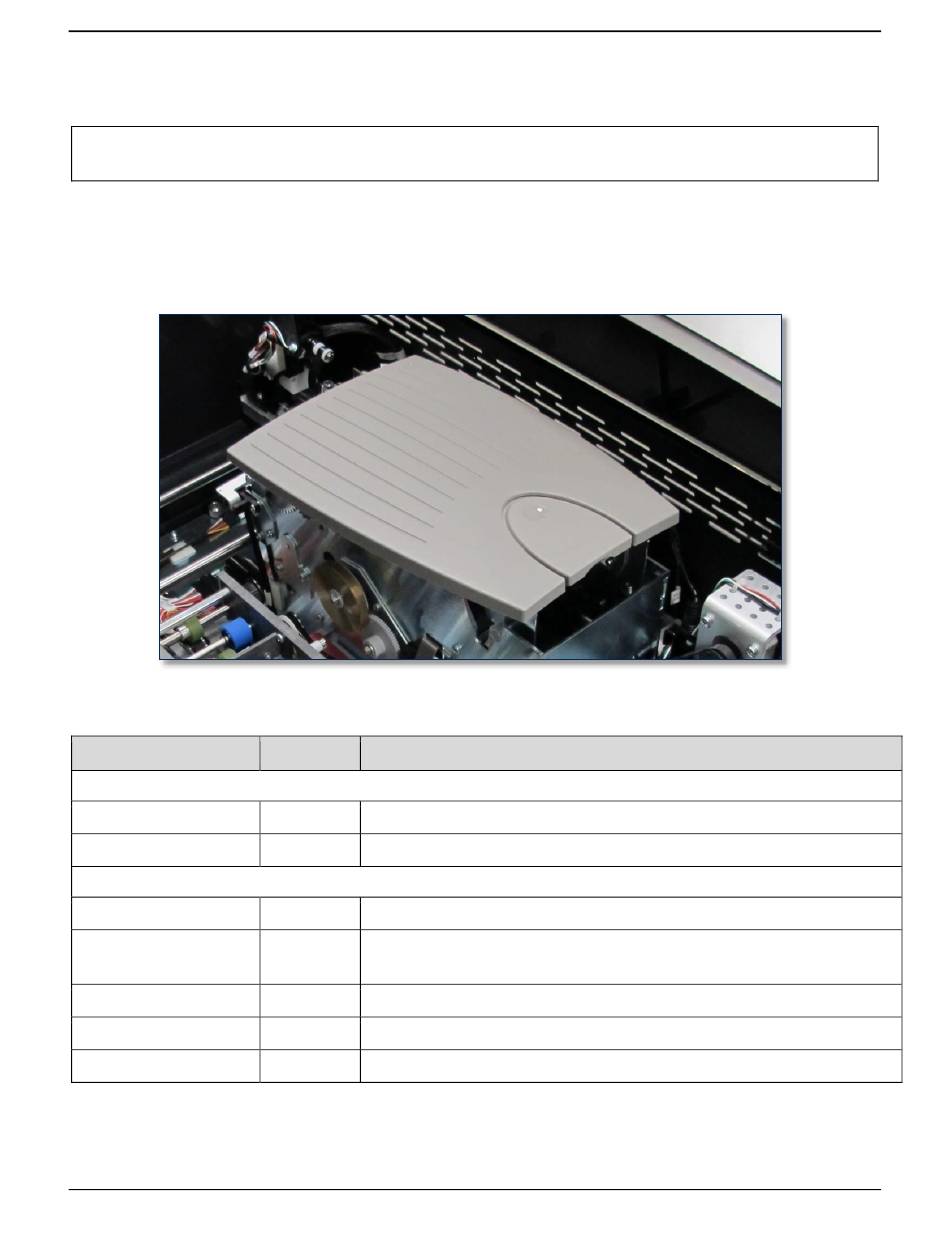

Figure 5-57 – Image Printer Lid's Plastic Cover and Release Button

5.13.1 Tools, Materials, and Documents

Part Number
Required
N/A
N/A
Suggested
33011008
33011009
N/A
N/A
N/A
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Quantity
1 ea. Digital camera or smartphone with camera
1 ea. Tools, materials, and documents required for sub-procedures
1 ea. ASM TOOL KIT, FIELD SERVICE, EC2000, EC3000
ASSEMBLY, FIELD SERVICE KIT, SPARE PARTS STARTER,
1 ea.
EC2000, EC3000
1 ea. Flashlight or equivalent
1 ea. Pen or pencil
1 ea. Paper and clipboard
Page 166 of 356 (D99875607-91)
Description
