5 - Removal and Re-installation

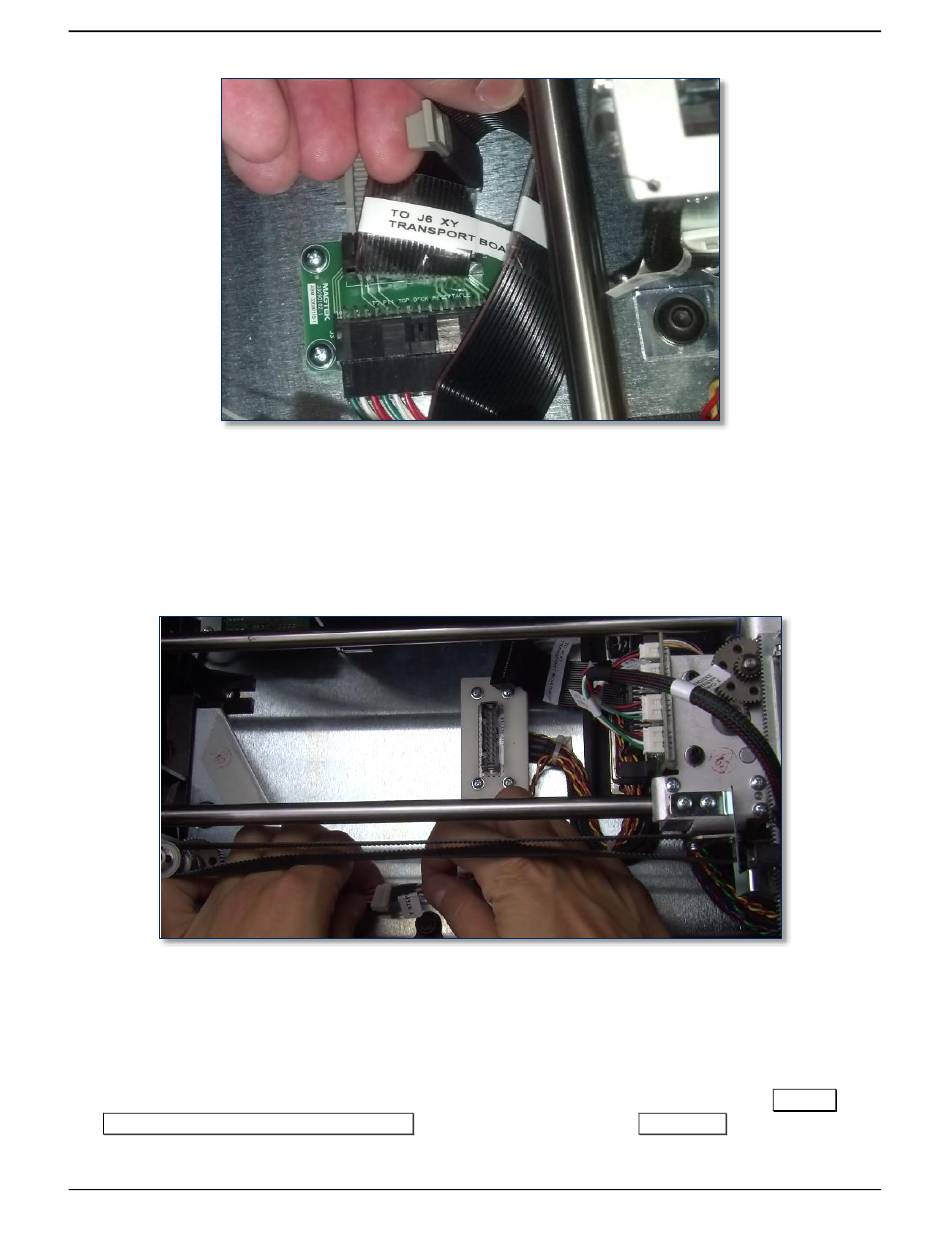

Figure 5-66 - XY Transport Ribbon Cable (TOP VIEW FROM FRONT)
7) Grasp the XY transport ribbon cable by the connector, not the cable itself, and disconnect it from the
top deck.
8) Locate the connectors in the middle of the Y stepper connection cable, which runs along the left rail
of the XY transport (see Figure 5-67).
9) Hold the two connectors (not the wires), and disconnect them.
Figure 5-67 - XY Transport Y Stepper Connection Cable (TOP VIEW FROM LEFT)
10) Use the 1/8" hex wrench to remove the three screws securing the XY transport to the top deck plate
near the rear of the device (see Figure 5-64) and set them aside.
11) Move the XY transport toward the rear of the device (see section 2.8 How to Safely Move
Transports By Hand).
12) Find the Indenter Ribbon Low sensor cable junction clipped to the top deck and labeled
SPARE #2 TOP DECK RECEPTACLE
steps to free it from the device:
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
connected to a cable labeled
Page 202 of 356 (D99875607-91)
TO P14
. Follow these
SPARE #2
