5 - Removal and Re-installation

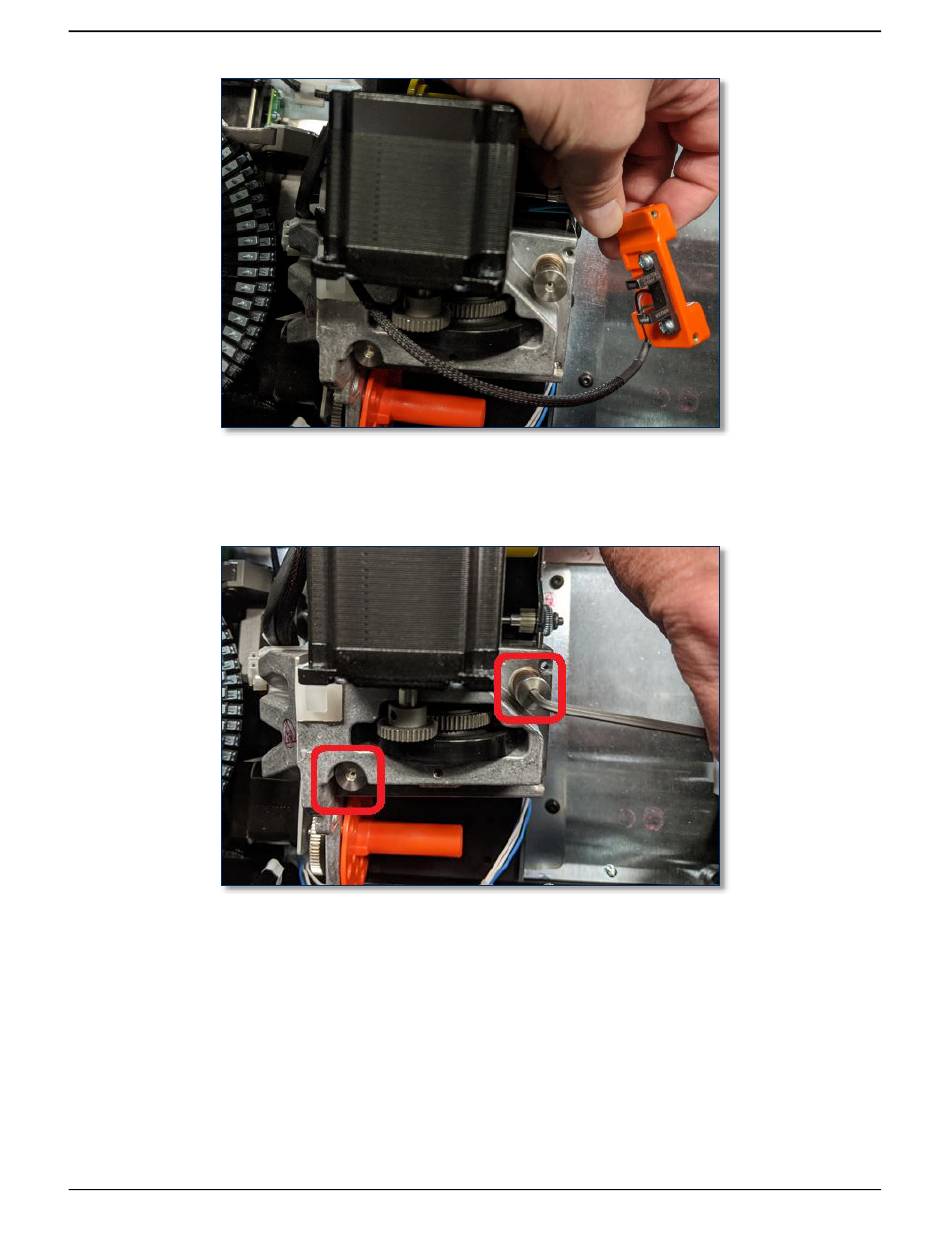

Figure 5-122 - Removing and Re-installing the Tipper Sensor (TOP VIEW)
11) Use the 1/8" L-handle hex key to remove the two spring-loaded posts that hold the tipper heater in the
tipper module, and set them aside.
Figure 5-123 - Supporting the Tipper Heater While Removing / Tightening (TOP VIEW)
12) Slide the tipper heater out the right side of the tipper.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 267 of 356 (D99875607-91)
