5 - Removal and Re-installation
9) Lean the top access door out toward the rear of the device as shown.

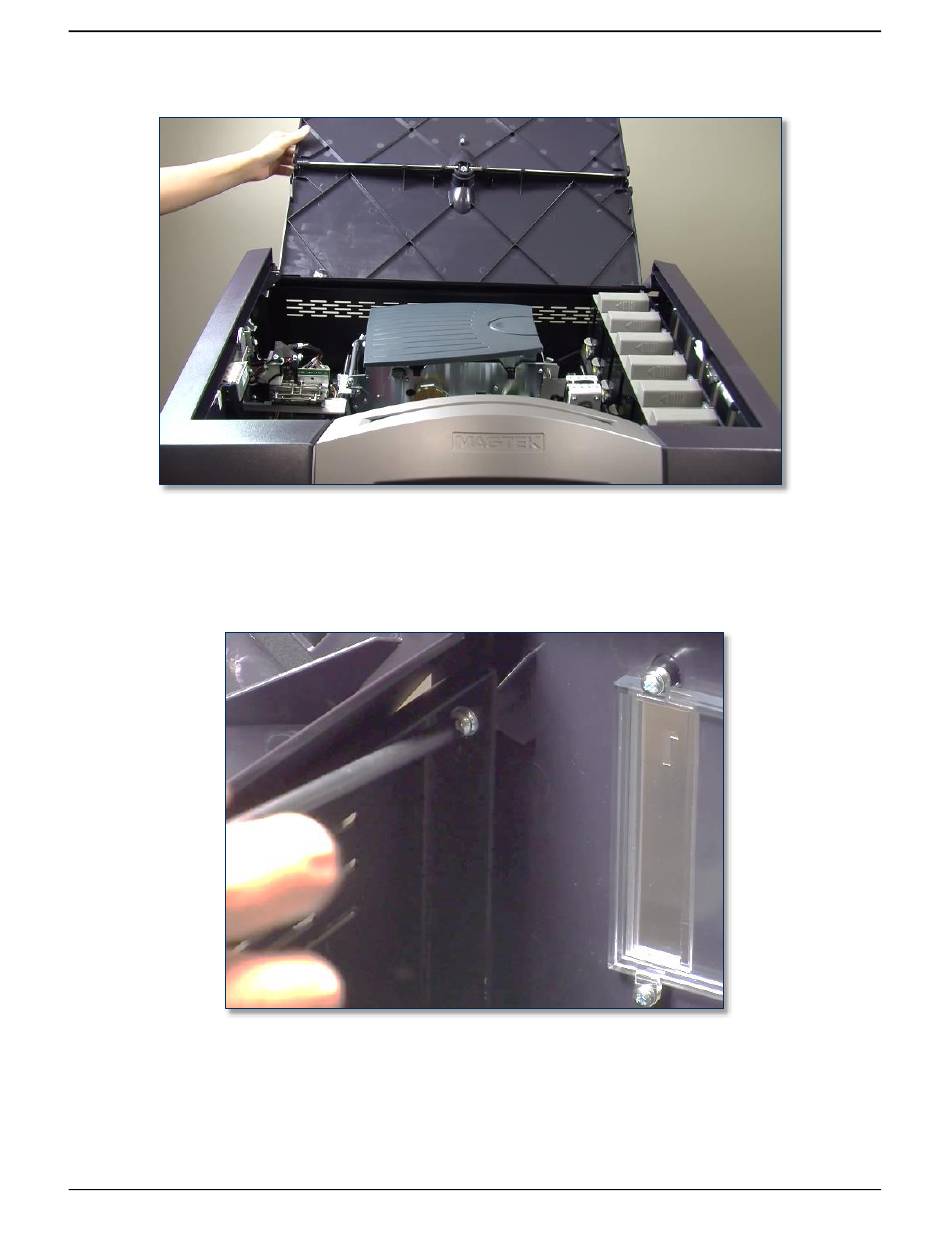

Figure 5-26 - Top Access Door Leaning Up and Back (FRONT VIEW)
10) Remove card stock hoppers 1 and 2.
11) Locate the screw and washer that fasten the cover to the metal plate on the rear of the base. The
fastener can be found in the rear upper right of the device behind hopper 1, as shown in Figure 5-27.
Figure 5-27 - Removing the Right Side Cover Screw Near Top Access Door Hinge (FRONT LEFT VIEW)
12) During the next step, hold the top access door with one hand or it may fall or break.
13) Use the No. 2 Phillips screwdriver to loosen the fastener.
14) Remove the top access door and set it aside with the two screws and washers (if necessary, move the
XY transport out of the way per section 2.8 How to Safely Move Transports By Hand).
