5 - Removal and Re-installation
5.7

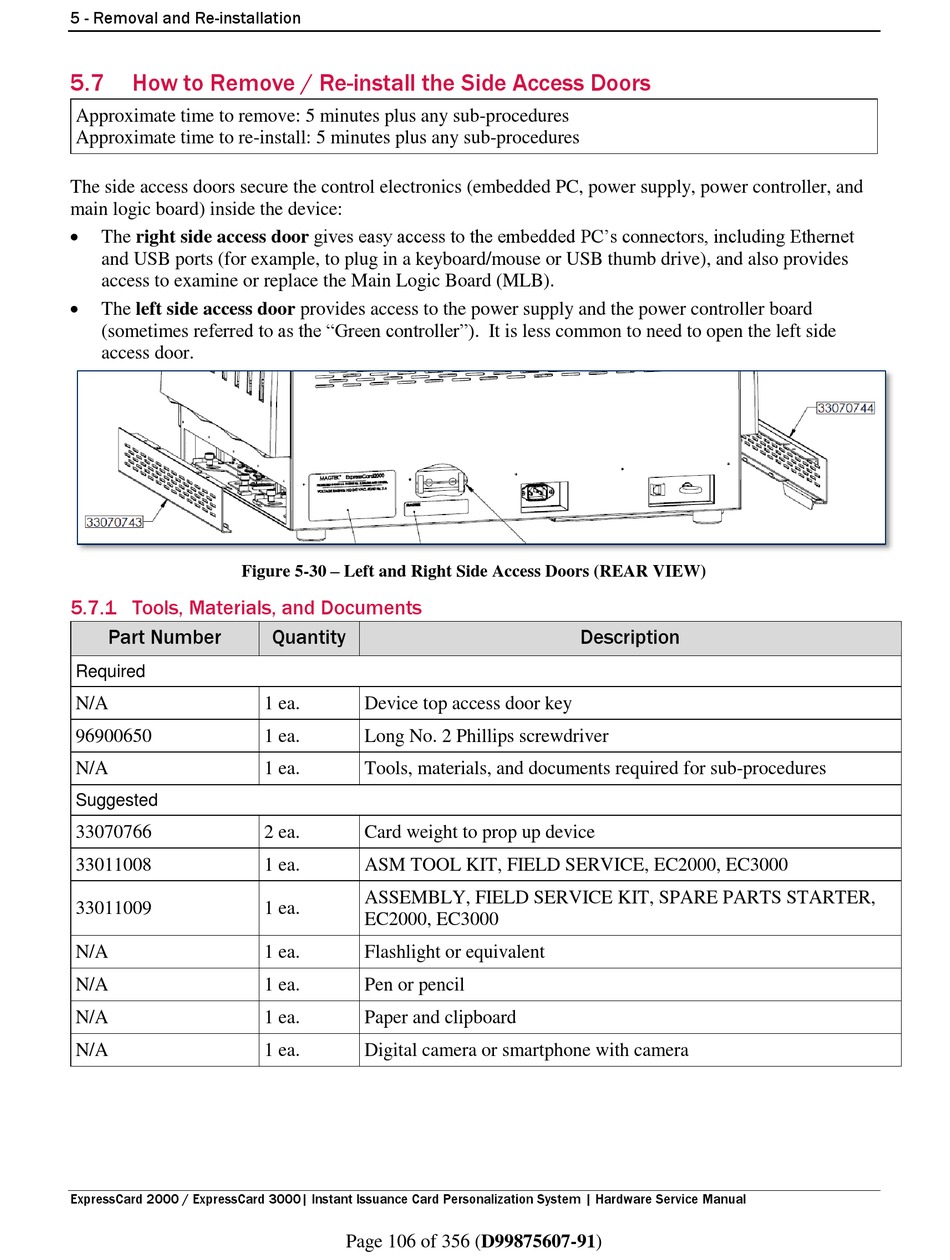

How to Remove / Re-install the Side Access Doors

Approximate time to remove: 5 minutes plus any sub-procedures
Approximate time to re-install: 5 minutes plus any sub-procedures
The side access doors secure the control electronics (embedded PC, power supply, power controller, and
main logic board) inside the device:

The right side access door gives easy access to the embedded PC's connectors, including Ethernet
and USB ports (for example, to plug in a keyboard/mouse or USB thumb drive), and also provides
access to examine or replace the Main Logic Board (MLB).

The left side access door provides access to the power supply and the power controller board
(sometimes referred to as the "Green controller"). It is less common to need to open the left side
access door.
Figure 5-30 – Left and Right Side Access Doors (REAR VIEW)

5.7.1 Tools, Materials, and Documents

Part Number
Required
N/A
96900650
N/A
Suggested
33070766
33011008
33011009
N/A
N/A
N/A
N/A
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Quantity
1 ea. Device top access door key
1 ea. Long No. 2 Phillips screwdriver
1 ea. Tools, materials, and documents required for sub-procedures
2 ea. Card weight to prop up device
1 ea. ASM TOOL KIT, FIELD SERVICE, EC2000, EC3000
ASSEMBLY, FIELD SERVICE KIT, SPARE PARTS STARTER,
1 ea.
EC2000, EC3000
1 ea. Flashlight or equivalent
1 ea. Pen or pencil
1 ea. Paper and clipboard
1 ea. Digital camera or smartphone with camera
Page 106 of 356 (D99875607-91)
Description
