5 - Removal and Re-installation

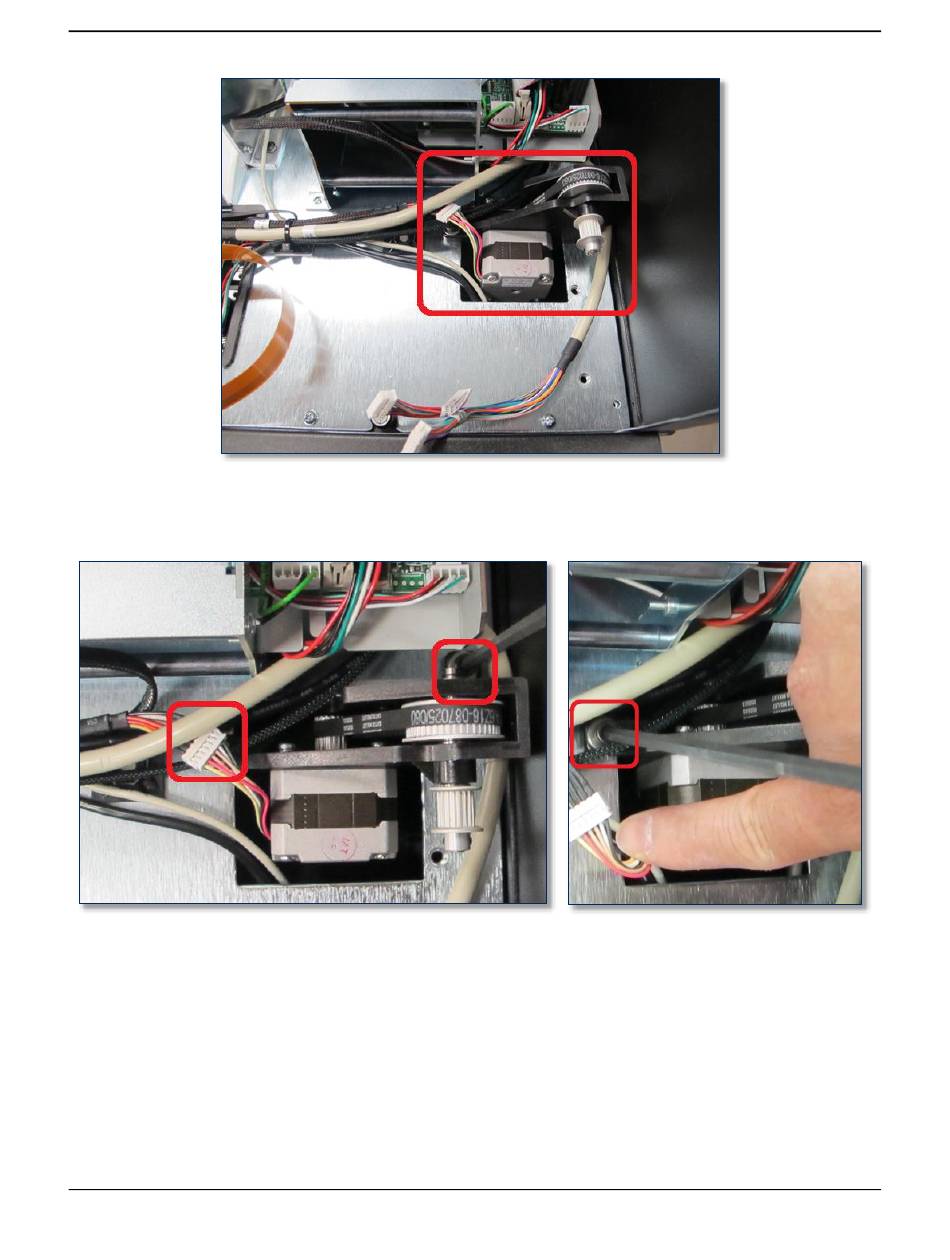

29) Use the 5/32" hex wrench to loosen the two screws that hold the hopper module gear box to the top
deck plate. The screw nearer the front of the device is beneath a bundle of cables, which you will
have to move out of the way.
30) Disconnect the gearbox cable from the device.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 122 of 356 (D99875607-91)
