5 - Removal and Re-installation

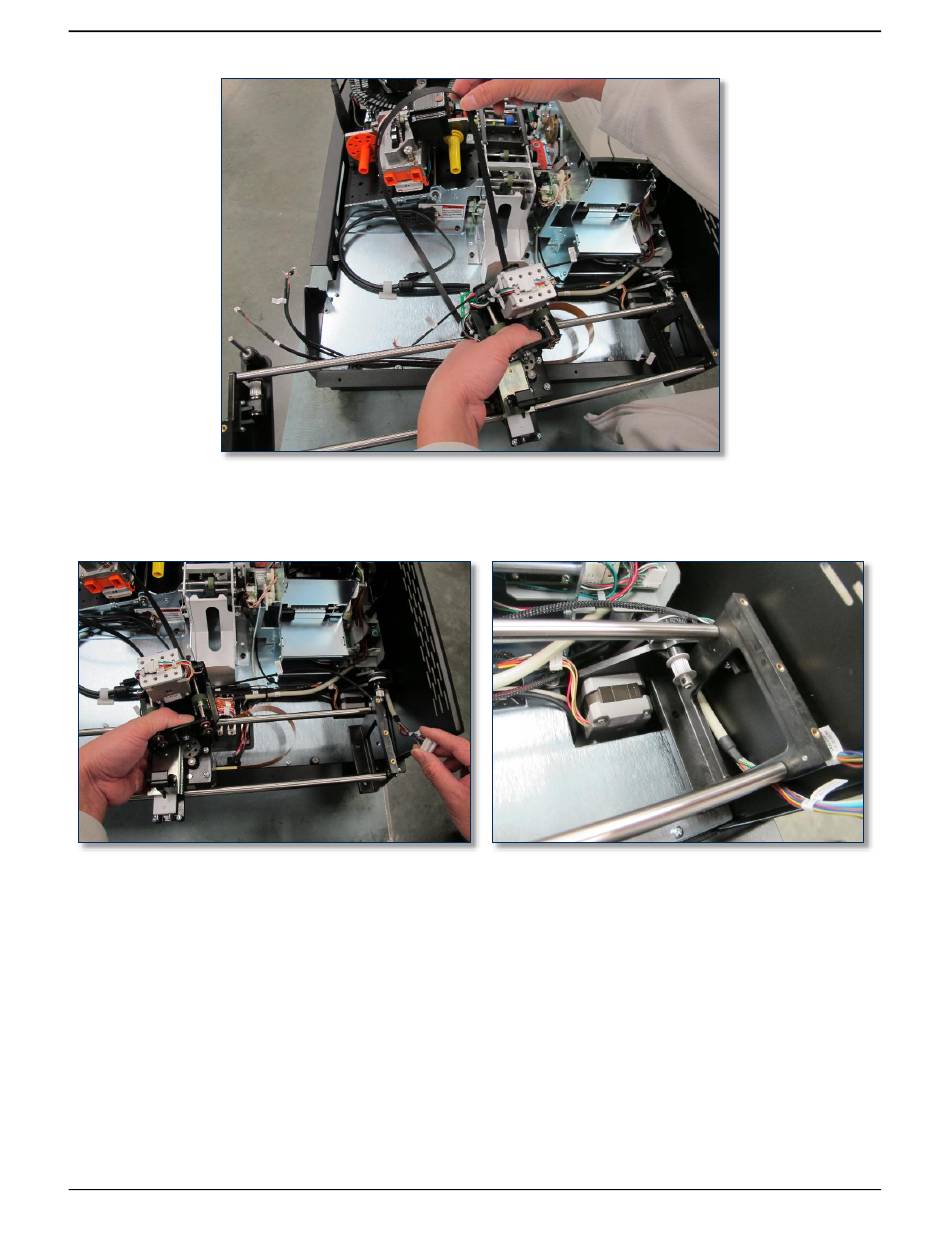

11) Slip the rear side of the module below the pulley on the hopper transport gearbox, then lower it to the
top deck plate to line it up with the screw holes. Use your free hand to make sure the module doesn't
pinch any cables or the drive belt.
12) Carefully lower the front side of the hopper module to the top deck plate and line it up with the screw
holes. Use your free hand to make sure the module doesn't pinch any cables or the drive belt.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 128 of 356 (D99875607-91)
