5 - Removal and Re-installation

5.32 How to Remove / Re-install the AC Filter (Power Supply Jack)


Prepare device for removing / reinstalling modules
Remove left side access door
Remove power supply
Remove AC filter
Reverse to re-install
Approximate time to remove: 10 minutes plus any sub-procedures
Approximate time to re-install: 5 minutes plus any sub-procedures
The AC filter is the connection point for the ExpressCard's power cable, which interfaces between the
power cable and the power supply inputs. It is located on the rear center of the device.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
High-level Steps

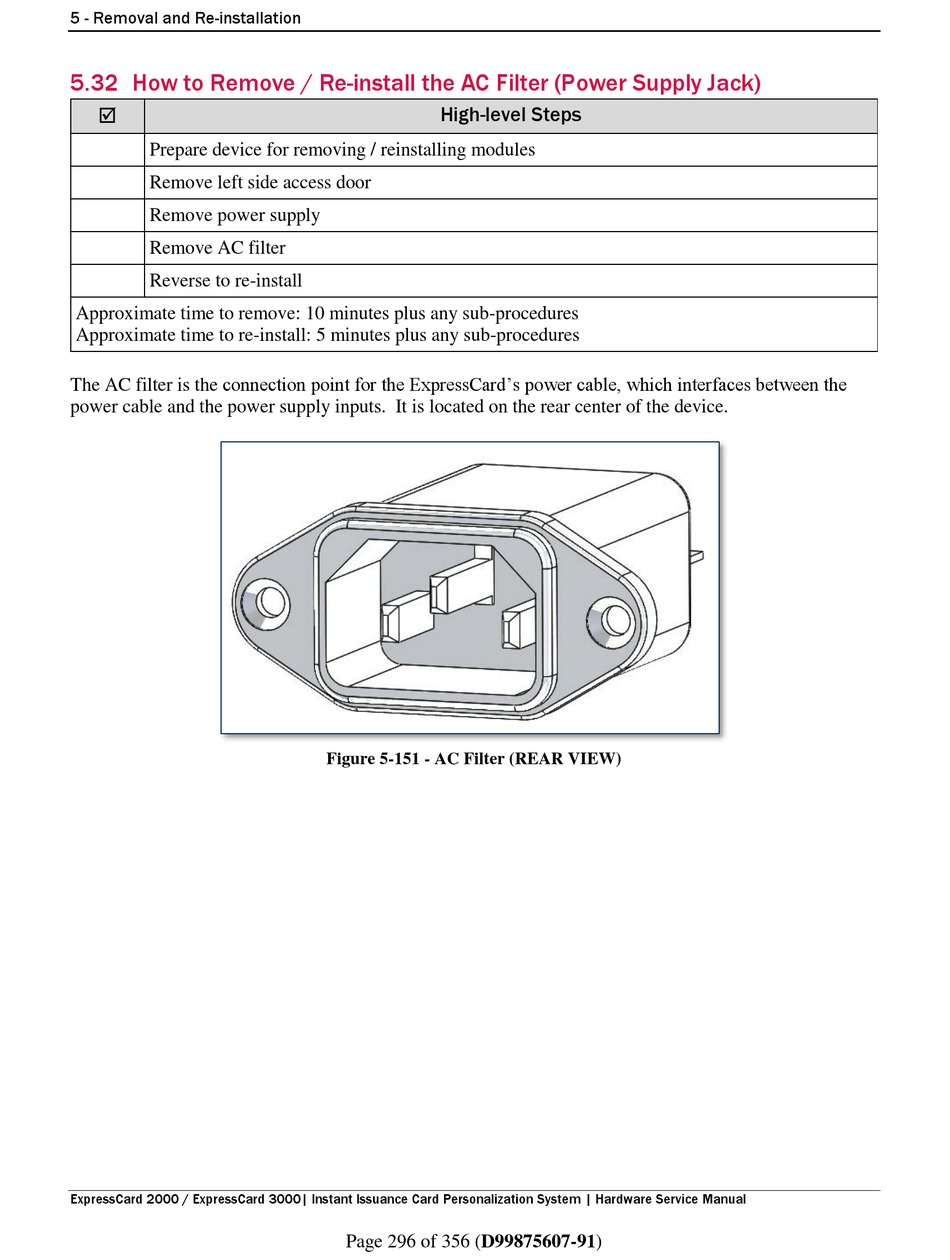

Figure 5-151 - AC Filter (REAR VIEW)
Page 296 of 356 (D99875607-91)
