5 - Removal and Re-installation

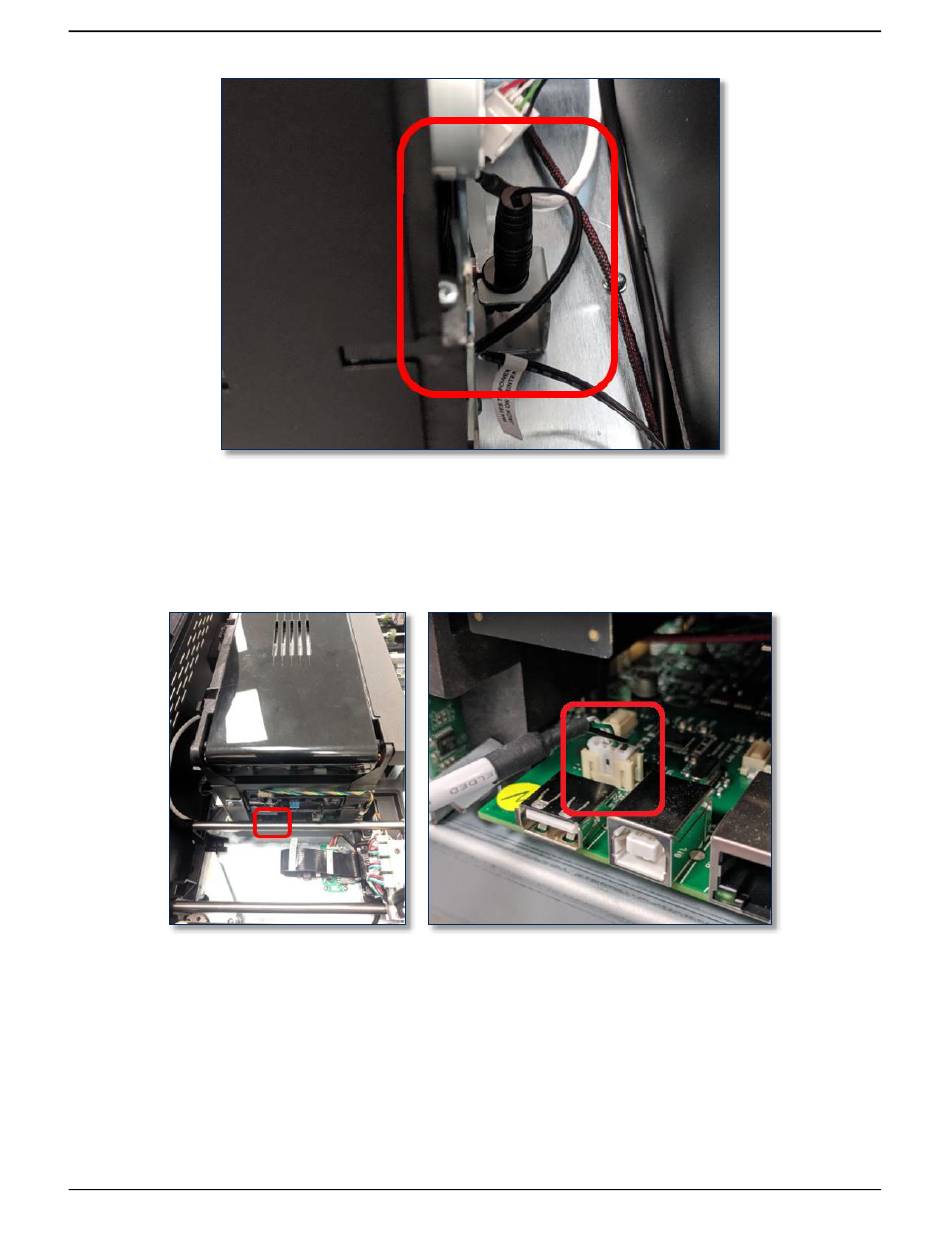

Figure 5-59 - Image Printer Power Connector (RIGHT VIEW)
10) Look at the left side of the image printer for a cable that comes from the back wall of the device,
around the left side of the image printer, and into a circuit board on the left inside. This is the image
printer's USB cable. Disconnect it and move it out of the way. You may slide the image printer
forward and lift the left side for easier access to the connector.
11) On the front left corner of the image printer, find the cable labeled PRINTER EXIT SENSOR
CABLE and disconnect it (Figure 5-60). If the right XY transport rail is in the way, you may use
two pairs of needle nose pliers to disconnect and reconnect it.
