5 - Removal and Re-installation
5.8.3 Re-install

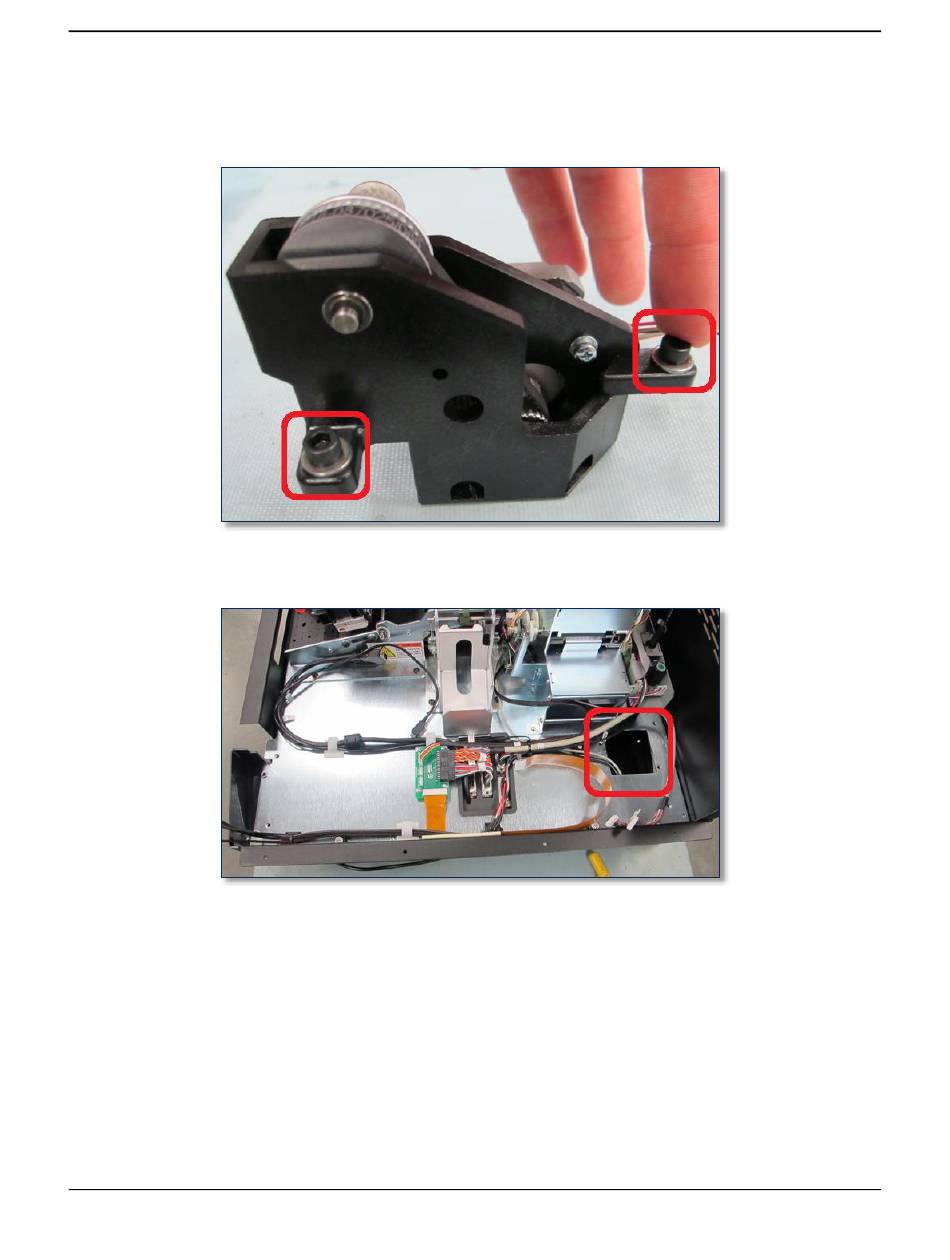

To re-install the hopper module, follow these steps:
1) Pre-install the screws and washers you set aside earlier into the hopper gearbox.
2) Locate the cutout in the top deck plate near the rear of the device where the hopper gearbox will be
installed.
3) Locate the lip of the image printer base plate that overlaps the cutout.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
