5 - Removal and Re-installation

5.8.2 Remove

To remove the hopper module, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Remove the cover by following the steps in section 5.3 How to Remove / Re-install the Cover.

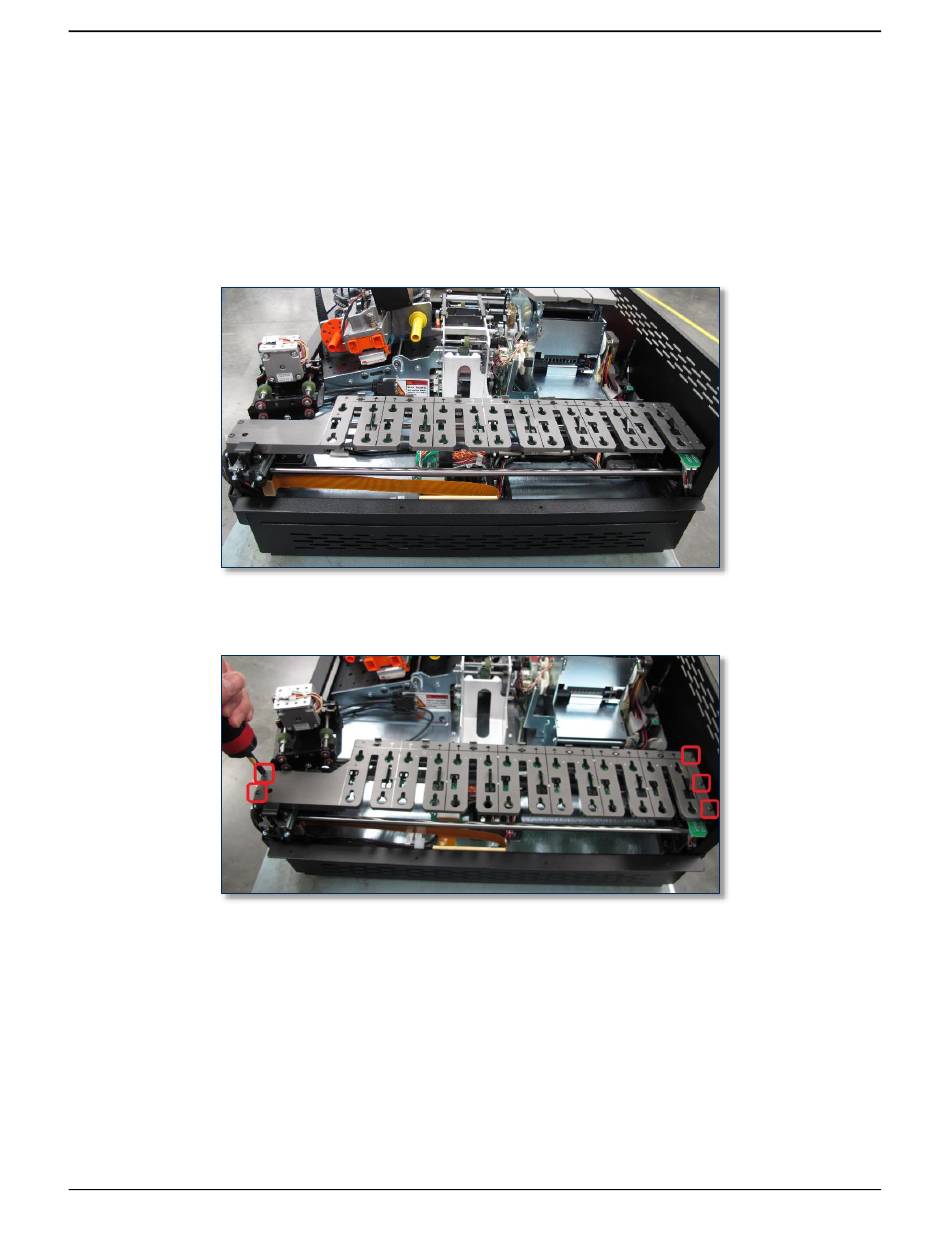

3) Remove all the card stock hoppers and set them aside in a secure location, or give them to the
customer for secure temporary storage.
4) Use the 5/64" hex wrench to remove 5 ea. screw 46500187 that hold the hopper deck plate to the
hopper module.
5) Carefully lift the hopper deck plate off the hopper module, turn it over so you can see printed circuit
board on the bottom, and locate the two sensor cables connected near the rear of the hopper module.
