5 - Removal and Re-installation
8) Slowly and carefully continue to pull the embedded PC out further until you can see the remaining
cables connected to its left half, as shown in Figure 5-130. While pulling, use a flashlight and other
tools as appropriate to make sure its cables do not snag inside the device.
9) Support the embedded PC with your hand or an appropriate work surface while completing the final
steps.
10) If possible, take a photo of the connections to the embedded PC for reference during re-installation.

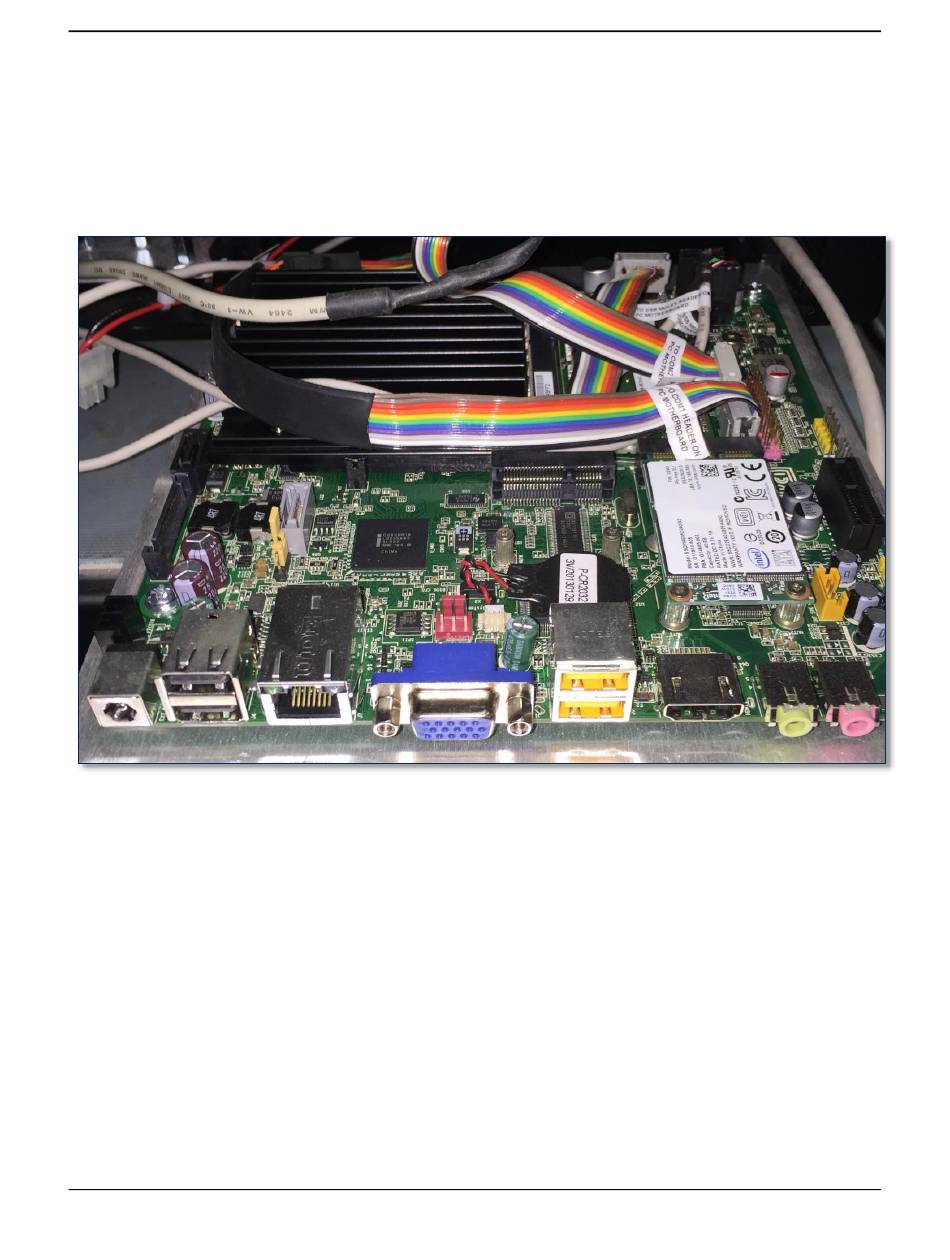

Figure 5-130 - Embedded PC Left Edge Visible (TOP VIEW FROM RIGHT)
11) Disconnect the remaining cables (see Figure 5-131), including at least two ribbon cables connected to
COM1 and COM2, and one ribbon cable connected to the multi-colored front panel connector. If
there is silicone adhesive holding any of the connectors, remove it completely.
