2 - Introduction

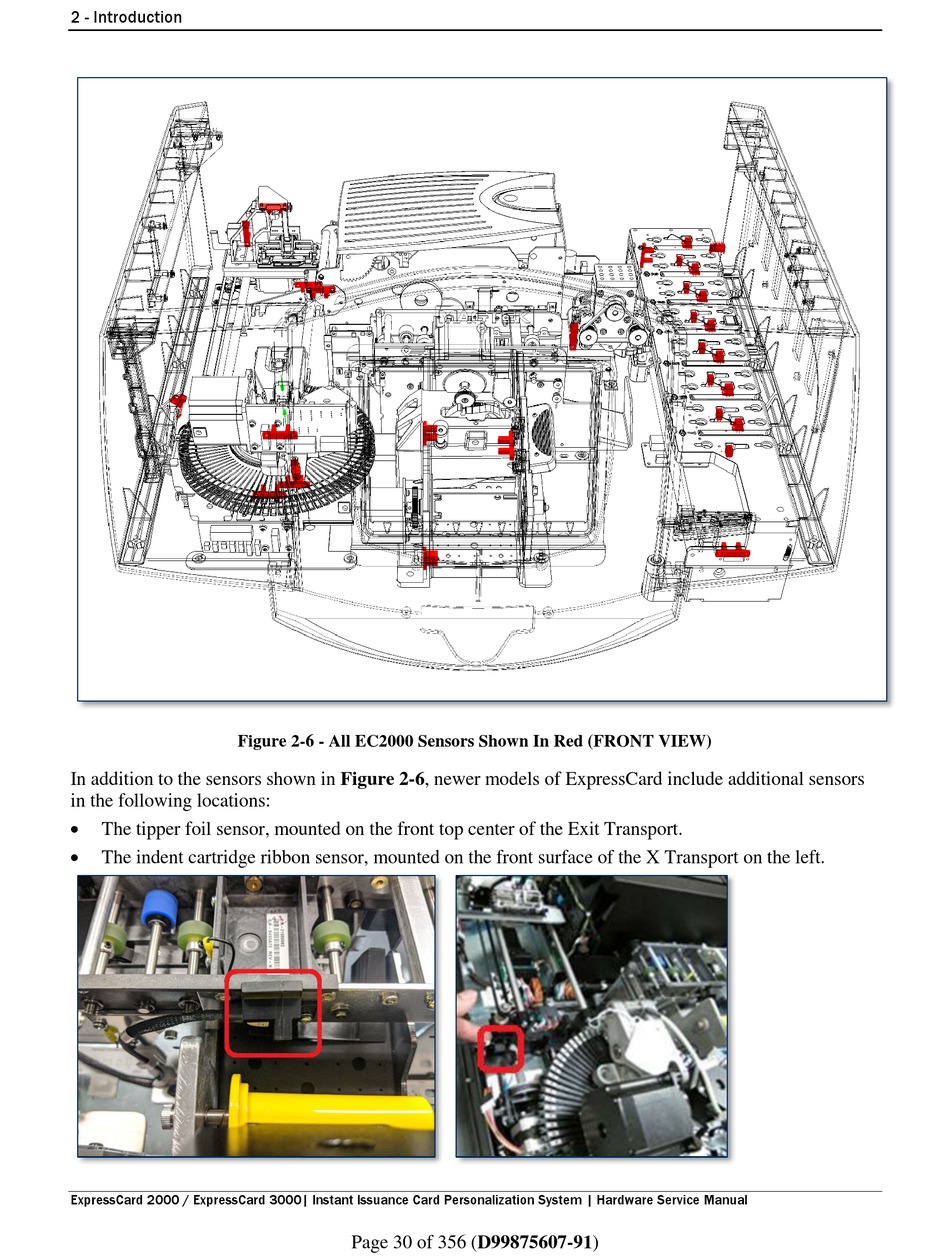

Figure 2-6 - All EC2000 Sensors Shown In Red (FRONT VIEW)
In addition to the sensors shown in Figure 2-6, newer models of ExpressCard include additional sensors
in the following locations:

The tipper foil sensor, mounted on the front top center of the Exit Transport.

The indent cartridge ribbon sensor, mounted on the front surface of the X Transport on the left.
