5 - Removal and Re-installation

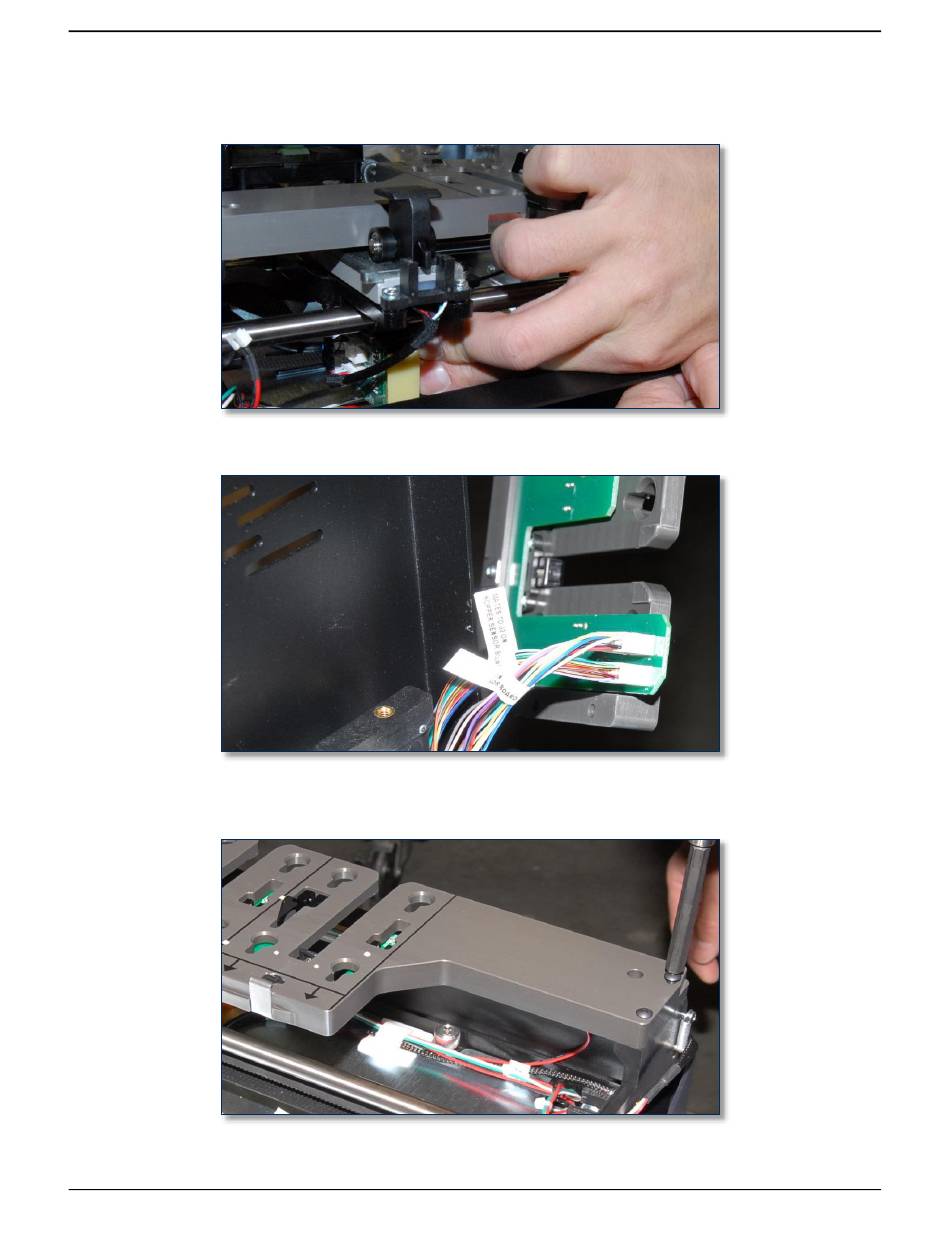

11) With the flex cable still stretched, push the flex cable into the double-stick tape.
12) Make sure the cable is straight, then stick it firmly to the foam tape.
13) Re-connect the sensor cables to the hopper deck plate.
14) Use the 5/64" hex wrench to re-install the five screws that attach the hopper deck plate to the hopper
module.
15) Test the new flex cable by pulling on the drive belt to move the hopper shuttle along the full range
from front to back. Do not pull directly on the hopper shuttle or you may damage it. Make sure
