5 - Removal and Re-installation

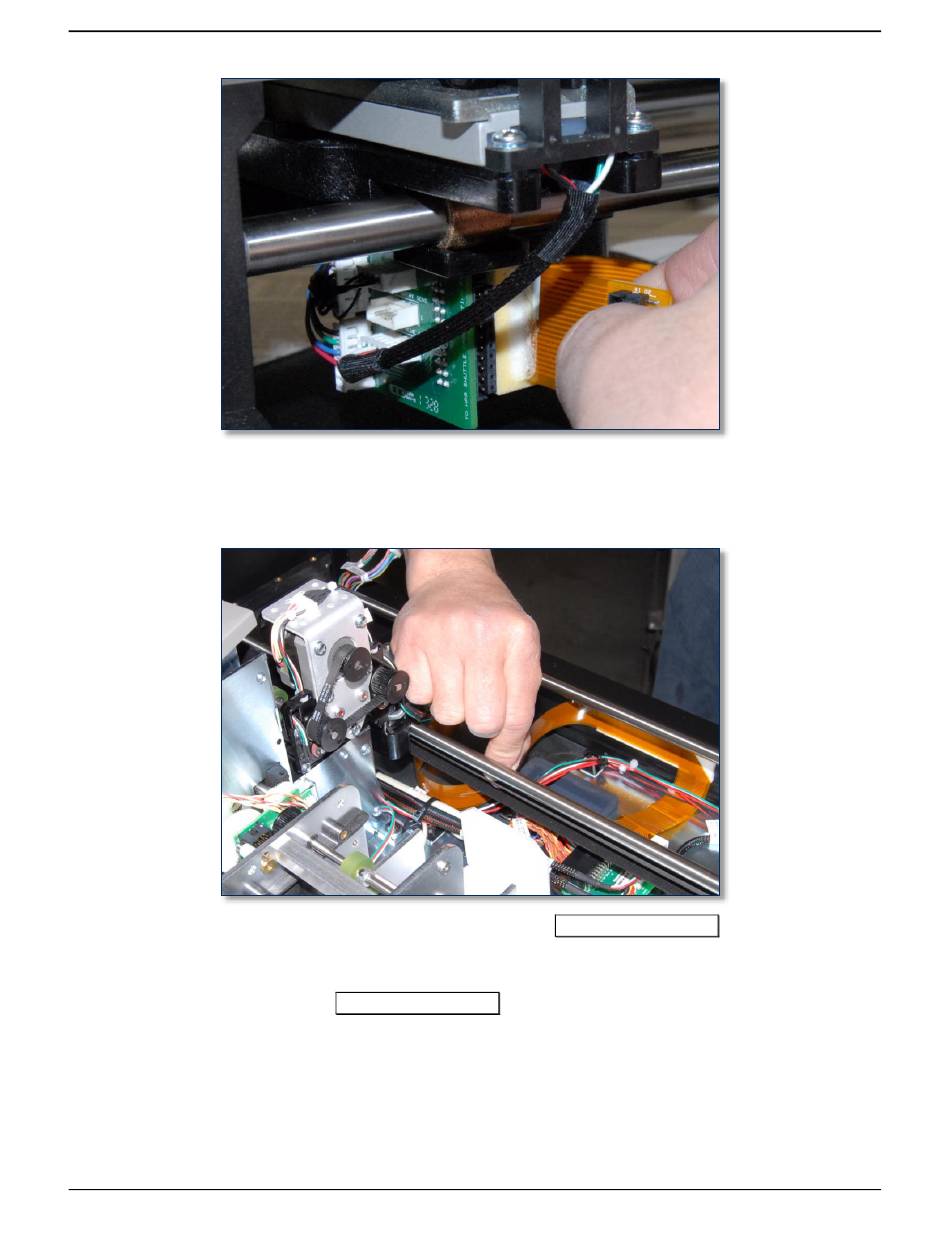

Figure 5-39 - Disconnecting the Hopper Transport Flex Cable
9) Pull on the belt to move the transport toward the rear of the device near the image printer. Do not
pull directly on the hopper shuttle or you may cause irreparable damage.
10) Trace the hopper module's flex cable to a connector on the
top deck plate (see Figure 5-40).
11) Slide the outer portion of the connector out (toward the flex cable) to unlock it.
12) Disconnect the cable from the
require very little force. If it sticks, make sure the connector is completely unlocked.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
circuit board (see Figure 5-40). It should
HOPPER SHUTTLE
Page 147 of 356 (D99875607-91)
circuit board on the
HOPPER SHUTTLE
