5 - Removal and Re-installation

5.9.2 Remove

To remove the hopper transport flex cable, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Remove the cover. For details, see section 5.3 How to Remove / Re-install the Cover.
3) Remove all the card stock hoppers and set them aside in a secure location, or give them to the
customer for secure temporary storage.

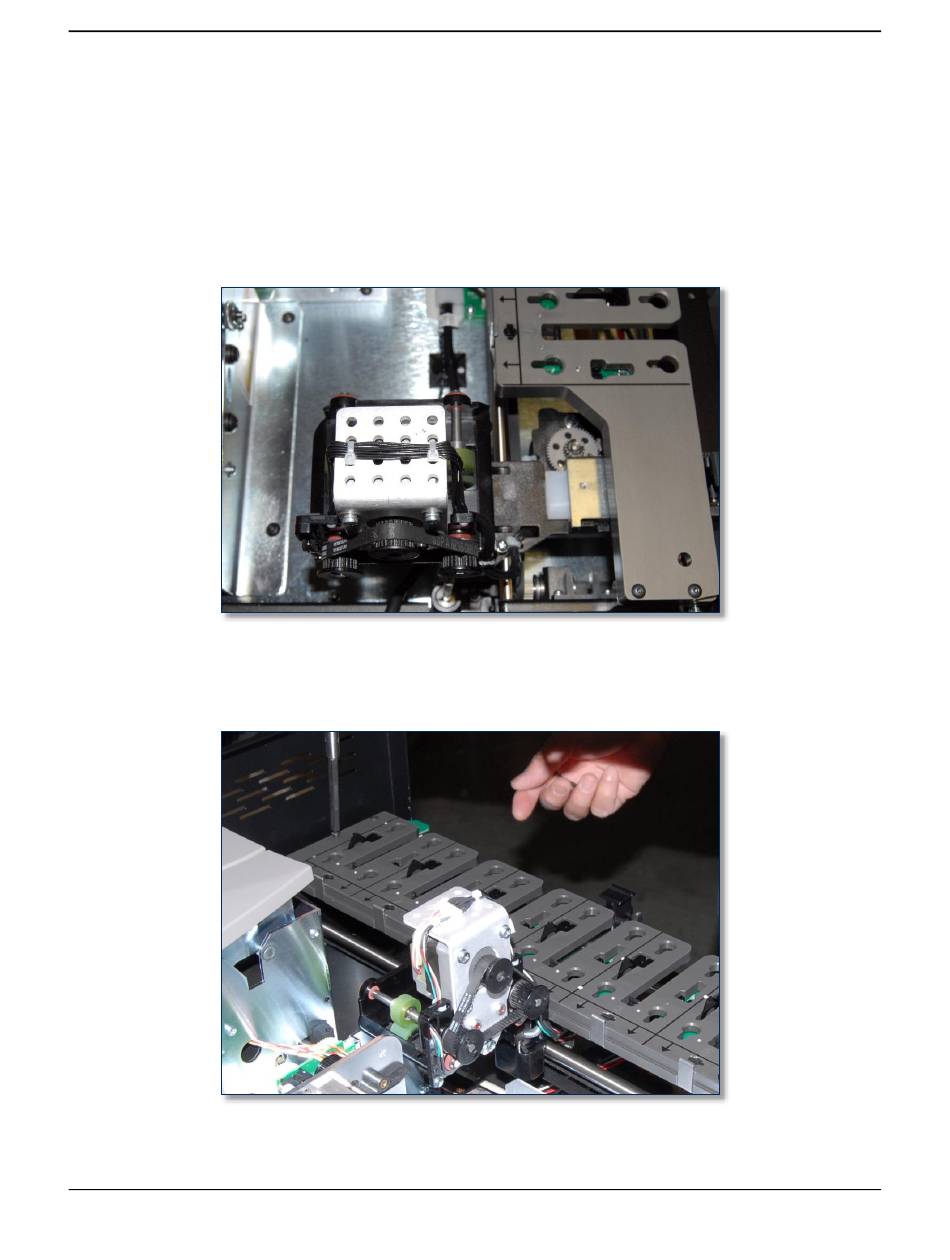

Figure 5-35 - Save Removal Location for Hopper Transport (TOP VIEW FROM FRONT)
4) Use the 5/64" hex wrench to remove the five screws that secure the hopper deck plate to the hopper
module.
Figure 5-36 - Remove the Hopper Deck Plate Screws (FRONT LEFT VIEW FROM ABOVE)
