5 - Removal and Re-installation
To remove the main logic board, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Open the right side access door by following the steps in section 5.7 How to Remove / Re-install
the Side Access Doors.
3) Locate the MLB behind the right side access door, toward the front of the device.
4) Disconnect the Ethernet cable connecting the MLB to the embedded PC.

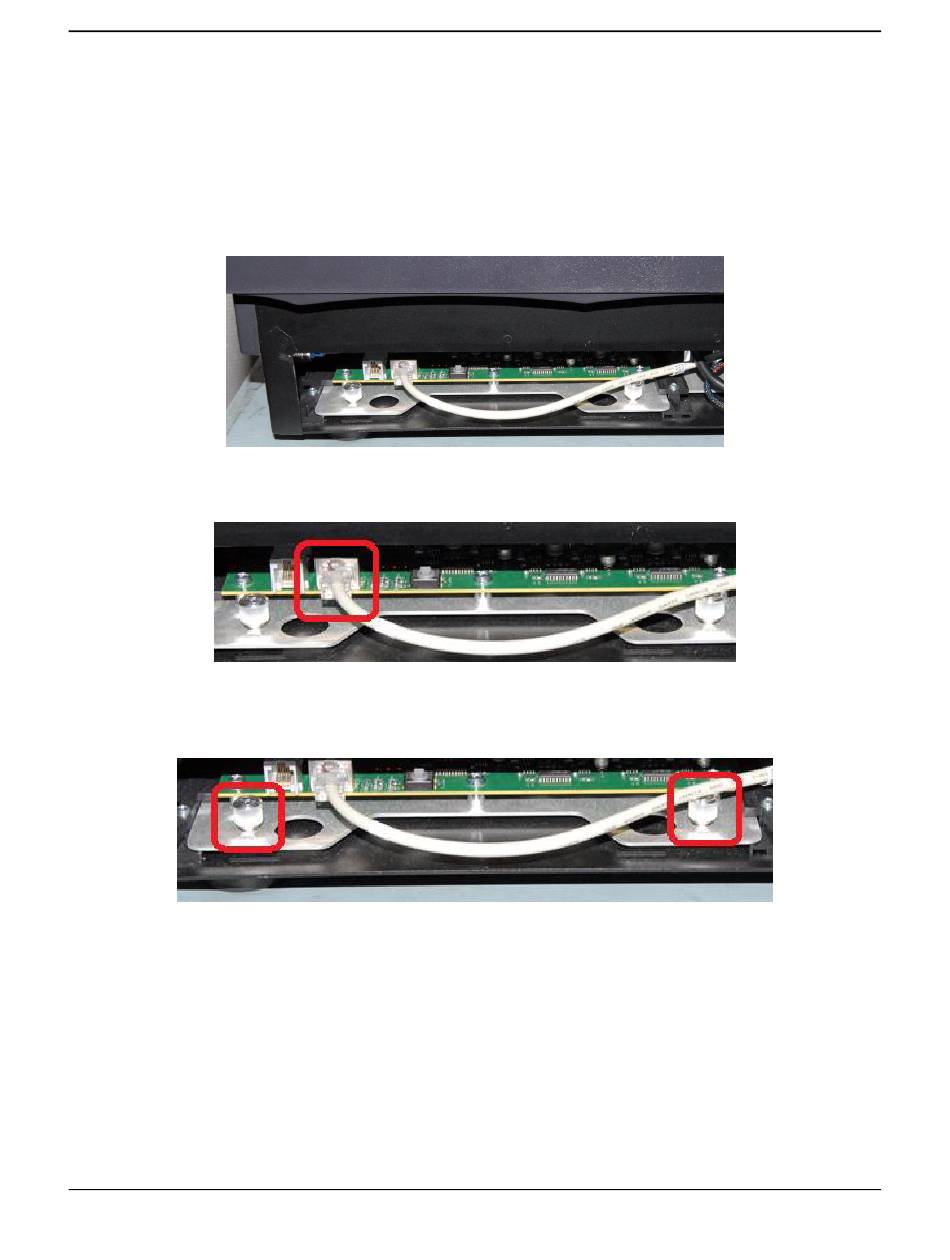

Figure 5-138 - Main Logic Board to Embedded PC Connector (RIGHT VIEW)
5) Loosen the two thumb screws securing the MLB tray to the lower deck until they pop up. Do not
attempt to remove them from the tray.
Figure 5-139 - Main Logic Board Thumb Screws (RIGHT VIEW)
6) Use the finger holes to slowly and carefully pull the MLB out of the device, and set it aside on an
appropriate work surface.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Figure 5-137 - Main Logic Board (RIGHT VIEW)
