How To Remove / Re-Install The Image Printer Module (Ec2000 With Ecp1) - Magtek ExpressCard 2000 Hardware Service Manual

5 - Removal and Re-installation
5.10 How to Remove / Re-install the Image Printer Module (EC2000 with
ECP1)
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 15 minutes plus any sub-procedures
The image printer, located in the rear center of the device, takes blank card stock from the hopper
transport, encodes any required data onto the card, produces images on both sides, and ejects the card out
the other side to be retrieved by the XY transport.

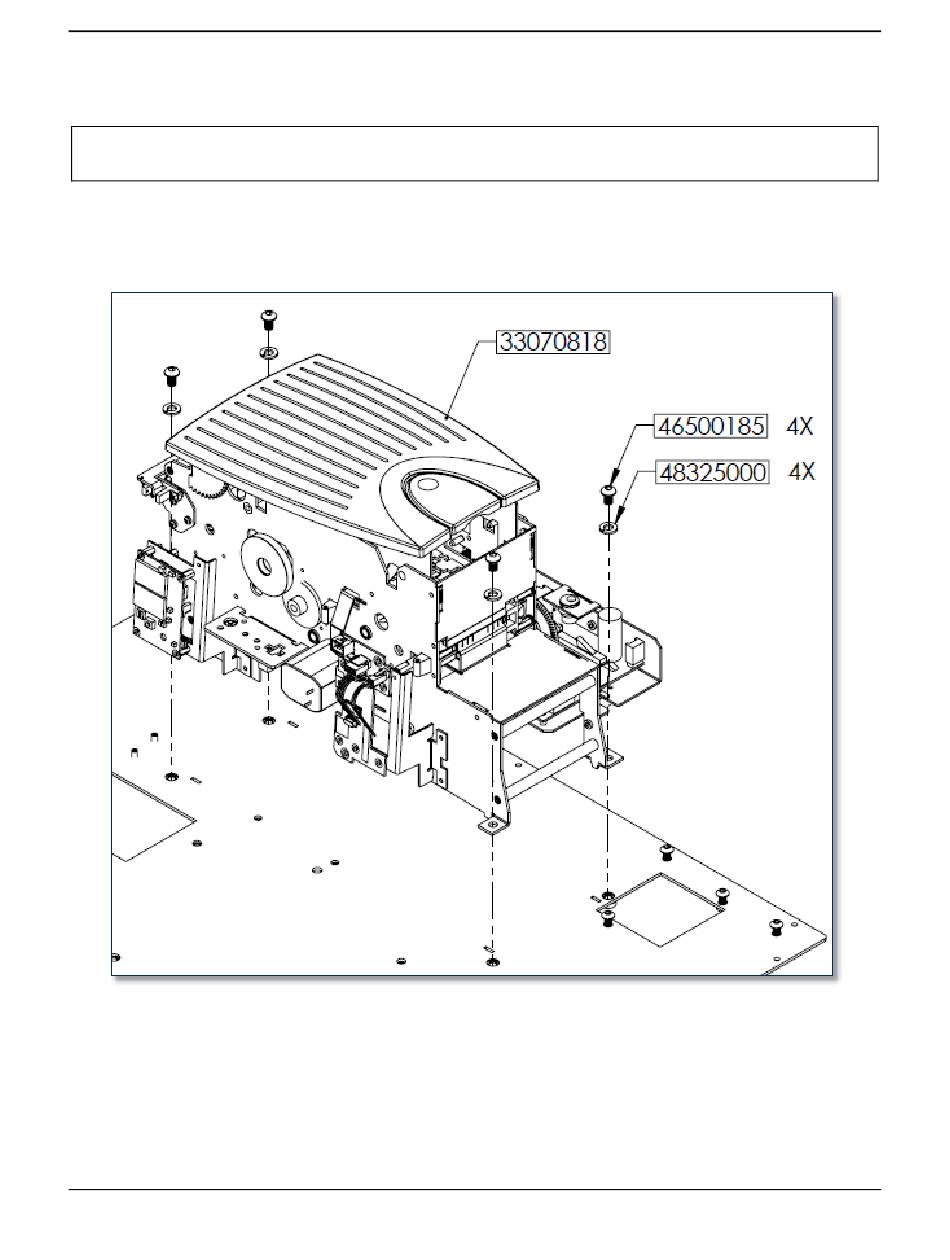

Figure 5-48 - Removing / Re-installing the Image Printer (FRONT RIGHT VIEW)
