Re-Install - Magtek ExpressCard 2000 Hardware Service Manual

5 - Removal and Re-installation

5.20.3 Re-install

To re-install the XY transport ribbon cable, follow these steps:
1) Locate the end of the cable labeled TO J6 XY TRANSPORT BOARD and connect it to the circuit
board on the top deck plate, with the cable coming off the board toward the front of the device. Press
down to make sure the connection is solid.

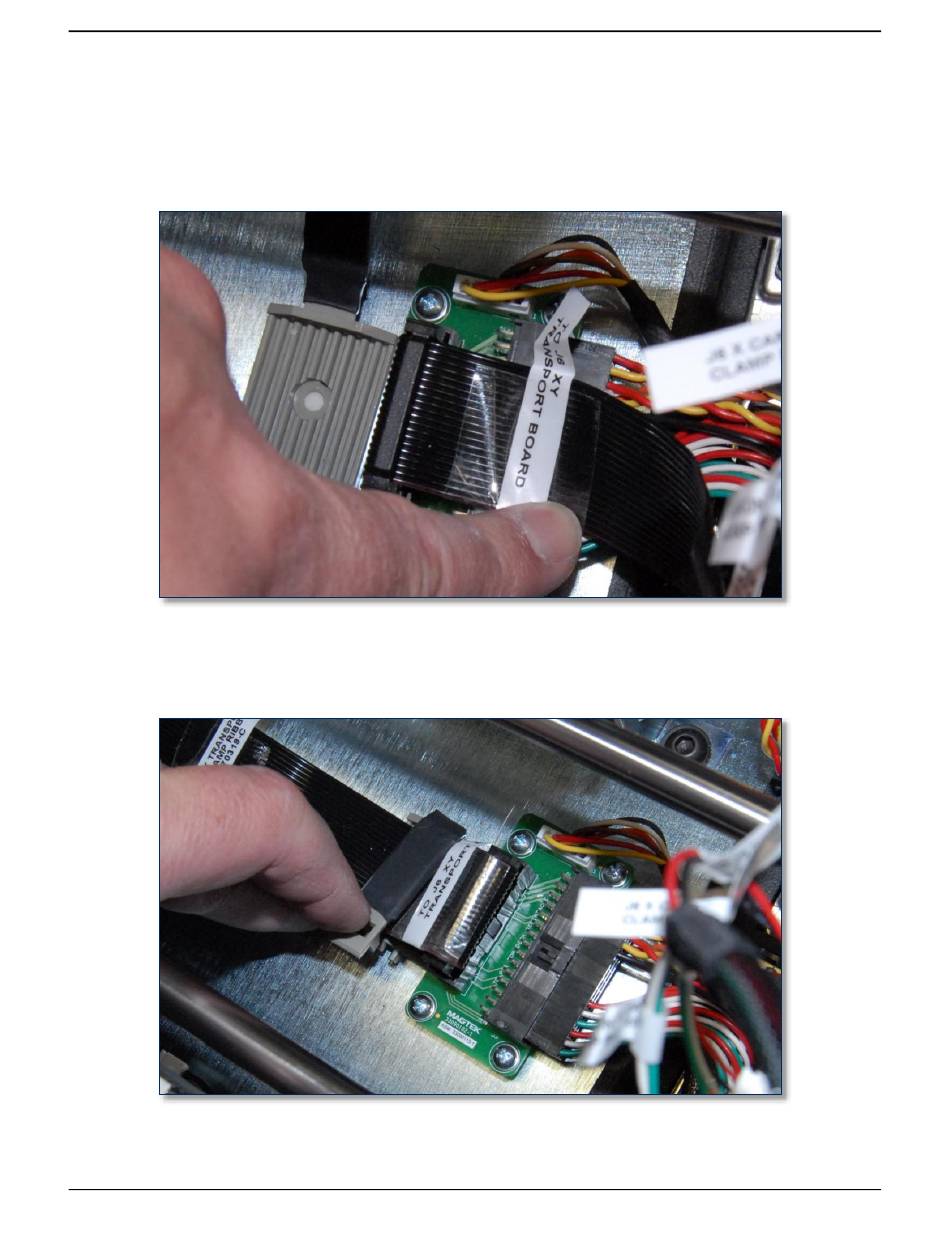

Figure 5-73 - Circuit Board Connection of XY Transport Ribbon Cable (TOP VIEW FROM LEFT)
2) Route the cable through the clip that secures it to the top deck plate, close the clip, and press down
until you feel it click in place (see Figure 5-74).
Figure 5-74 - Locking XY Transport Ribbon Cable In Place (TOP VIEW FROM LEFT)
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 211 of 356 (D99875607-91)
