5 - Removal and Re-installation

5.28.2 Remove

To remove the embedded PC, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Open the right side access door by following the steps in section 5.7 How to Remove / Re-install
the Side Access Doors.
3) Locate the embedded PC behind the right side access door, toward the rear of the device.
4) Loosen the two thumb screws securing the embedded PC tray to the lower deck (see Figure 5-127)
until they pop up. Do not attempt to remove them from the tray.

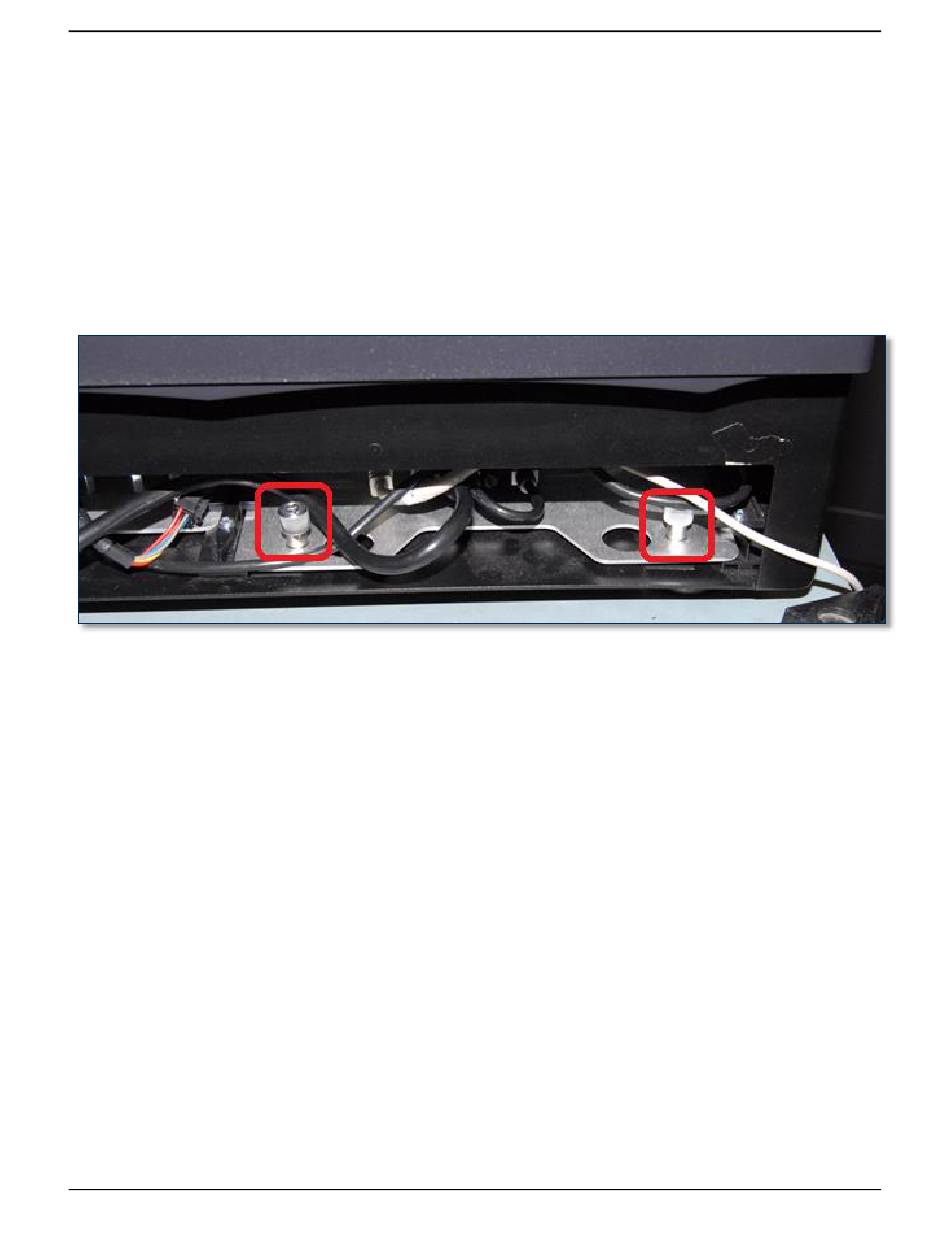

Figure 5-127 - Embedded PC Thumb Screws (RIGHT VIEW)
5) Use the finger holes to slowly and carefully pull the embedded PC out just far enough to make the
connectors along its edge accessible (see Figure 5-128). While pulling, use a flashlight and other
tools as appropriate to make sure its cables do not snag inside the device.
