Remove - Magtek ExpressCard 2000 Hardware Service Manual

5 - Removal and Re-installation

5.19.2 Remove

Follow these steps to remove the XY transport module from the device:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Disengage and lean back the top access door by following the steps in section 5.5 How to Remove /
Re-install the Top Access Door up to the point where the top access door is leaning up and back
behind the device.

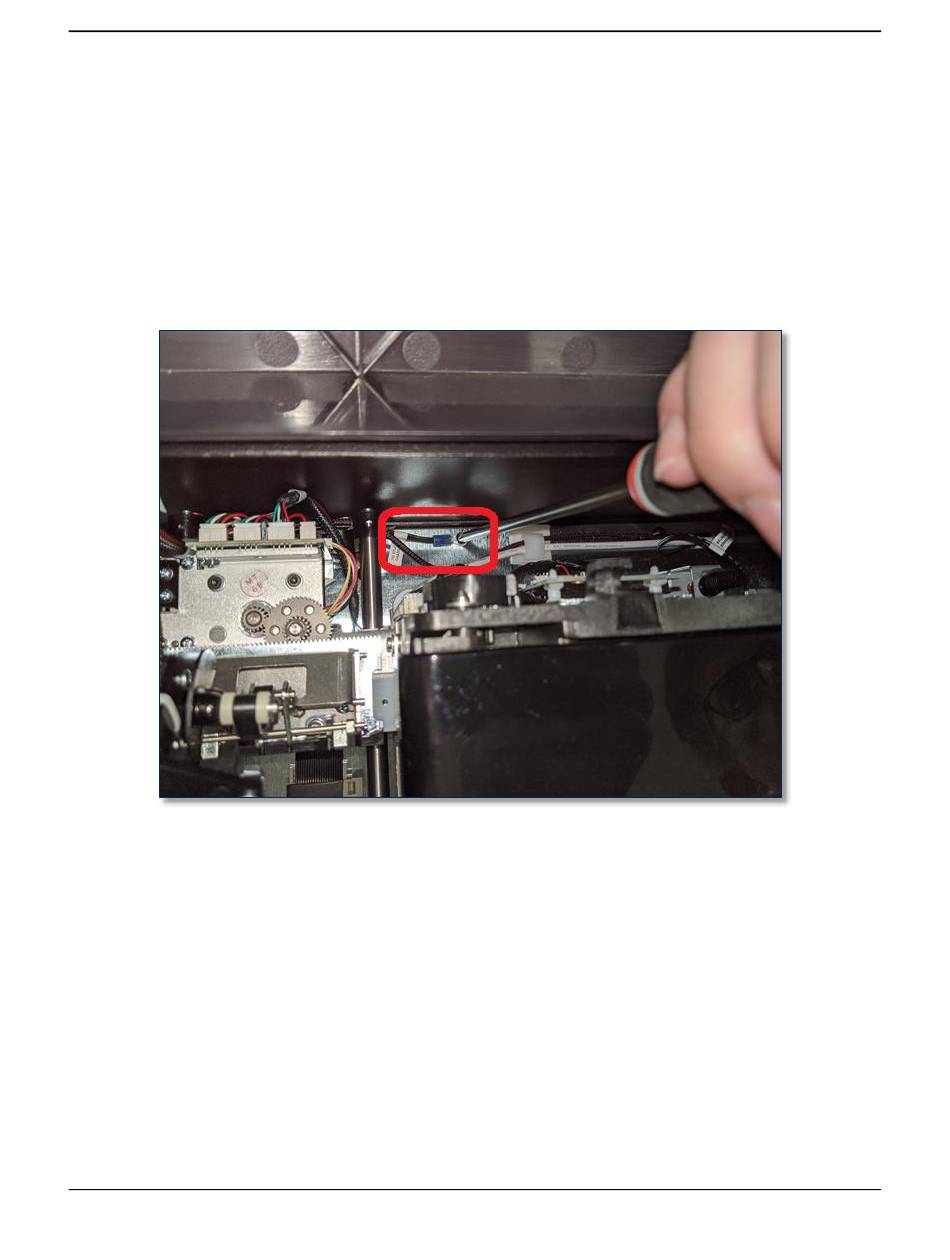

3) Locate the XY transport's ground cable, which is connected to the deck plate behind the image printer
as shown in Figure 5-65.
Figure 5-65 - XY Transport Ground Cable (TOP VIEW FROM FRONT)
4) Use the No. 2 Phillips screwdriver to remove the screw, and set it aside.
5) Move the XY transport toward the front of the device (see section 2.8 How to Safely Move
Transports By Hand).
6) Snap open the XY transport ribbon cable clamp between the rails as shown in Figure 5-66.
