6 - Adjustments
6) Both FontID1 and FontID2 relief heights should be between 0.017 inches and 0.019 inches, and the
sample card should come out flat or very slightly "frowning."
7) Use the FontID1 > CamAngleTop, FontID1 > CamAngleBottom, FontID2 > CamAngleTop, and
FontID2 > CamAngleBottom settings described earlier in this section to adjust the relief height and
card flatness, and create another

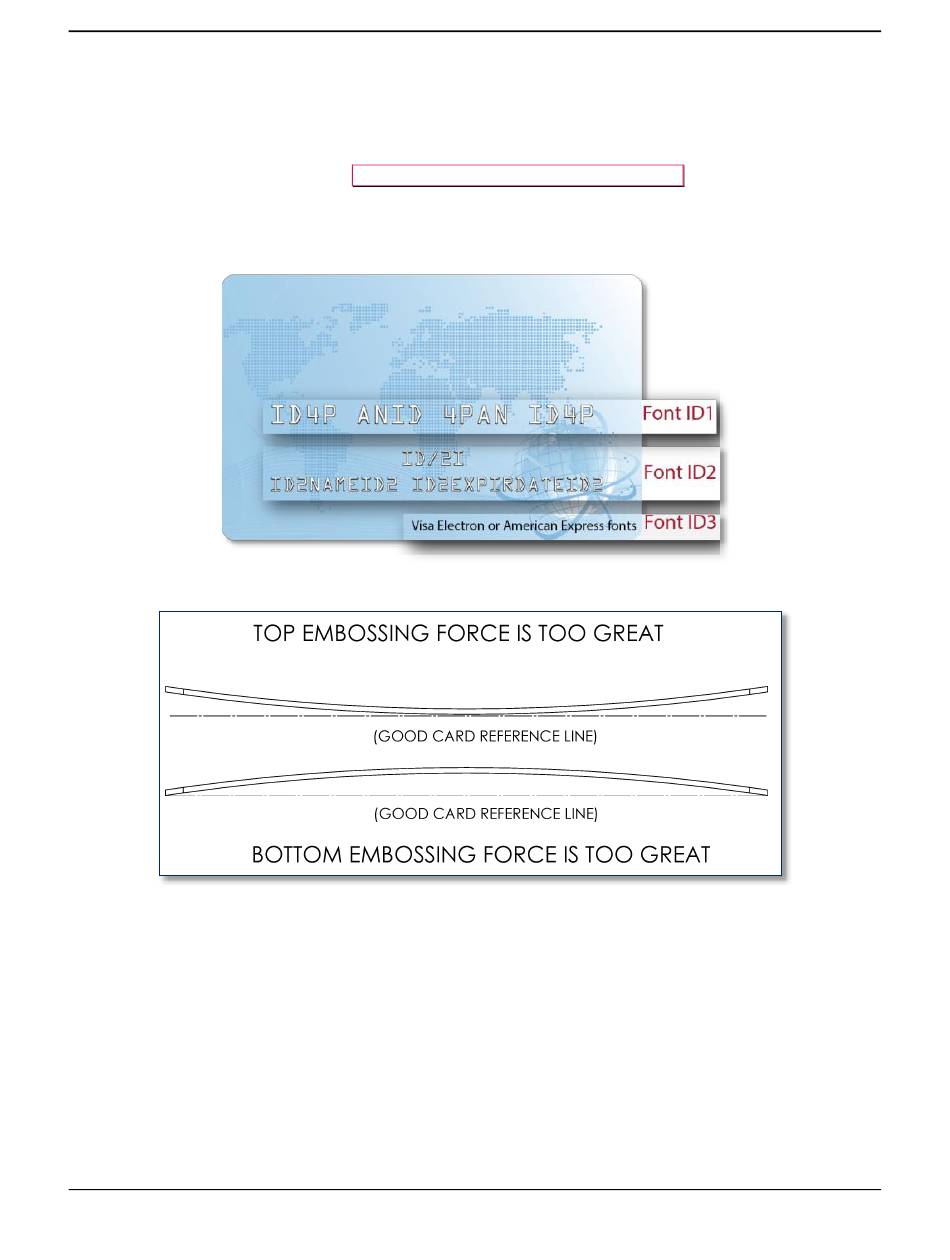

adjustments as necessary. Figure 6-9 shows which FontID corresponds to which characters on the
card. Figure 6-10 shows how the balance between CamAngleTop and CamAngleBottom affects
the flatness of the test card.
Figure 6-10 - Effects of Unbalanced Top / Bottom Embosser Settings
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
FullSet_v4_NoTip_NoPrintEmboss.xml
Figure 6-9 - Font IDs
Page 341 of 356 (D99875607-91)
card. Repeat the
