5 - Removal and Re-installation
b) Tuck any slack under the exit transport.
7) If you are installing the modules in an ExpressCard 3000, reverse the steps to re-route and re-connect

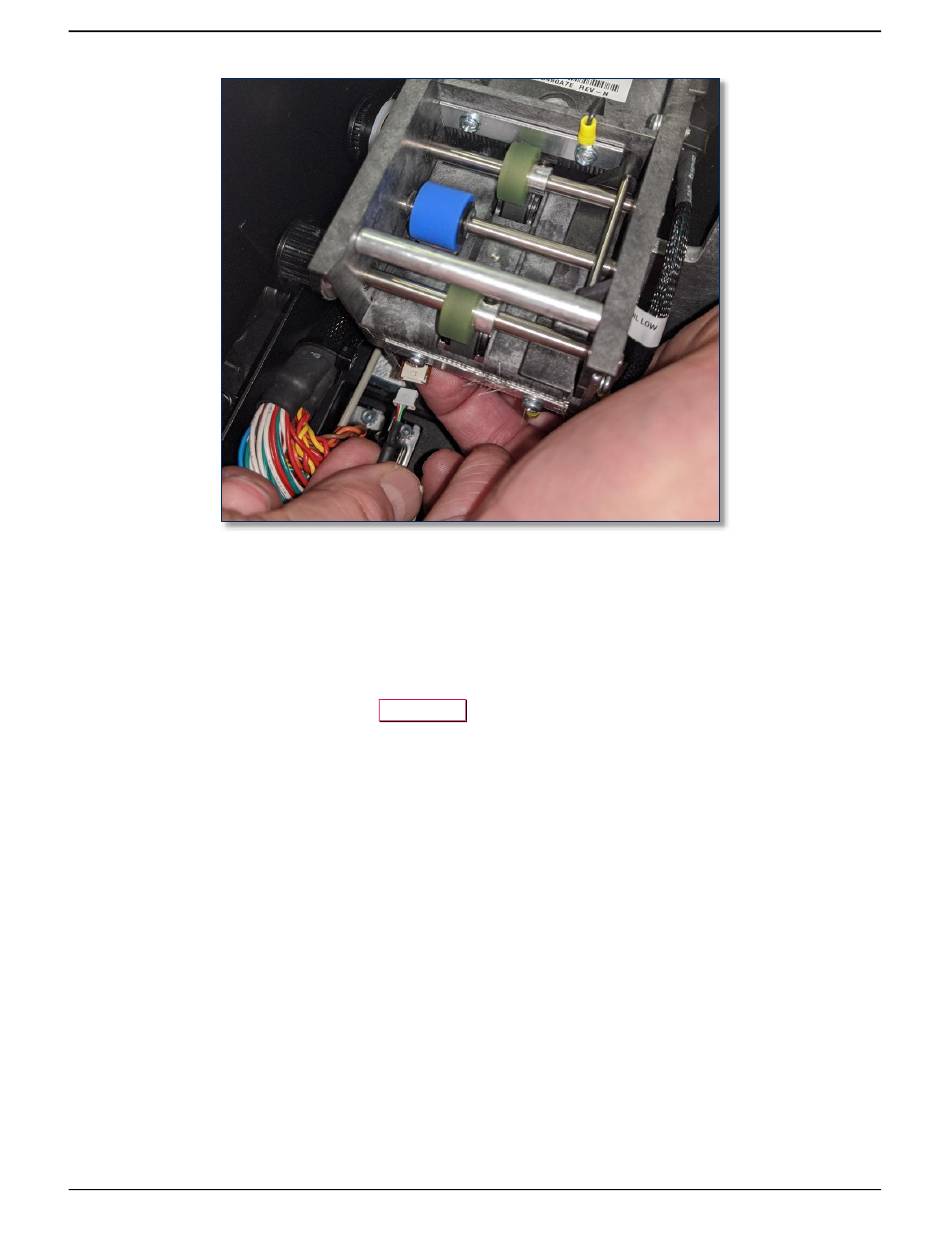

the foil sensor cable the same way (see Figure 5-102):
a) Find the foil sensor cable attached to the exit transport module.
b) Route the cable through the cord clip on the top deck near the embosser height sticker.
c) Route the foil sensor cable under the embosser cable.
d) Connect the foil sensor cable to
e) Re-connect the embosser cable, and press down on both sides of the connector to make sure it is
all the way in.
f) Re-tie any cables you had to cut free.
8) Re-connect the exit transport cable.
9) Re-install the tipper foil cartridge with the original tipper foil roll, or obtain and install a new one
from the customer.
10) Perform any additional service that requires the device to be powered off and open.
11) Re-install the cover and top access door by following the steps in sections 5.3 and 5.5.
12) Close the top access door.
13) Re-attach the power cable, network cable, and any security hardware.
14) Power on the device.
15) Set the ExpressCard to use the calibrated temperature of the heater included with the new tipper:
a) Look at the tipper heater on the right side of the tipper to find the calibrated temperature.
