6 - Adjustments

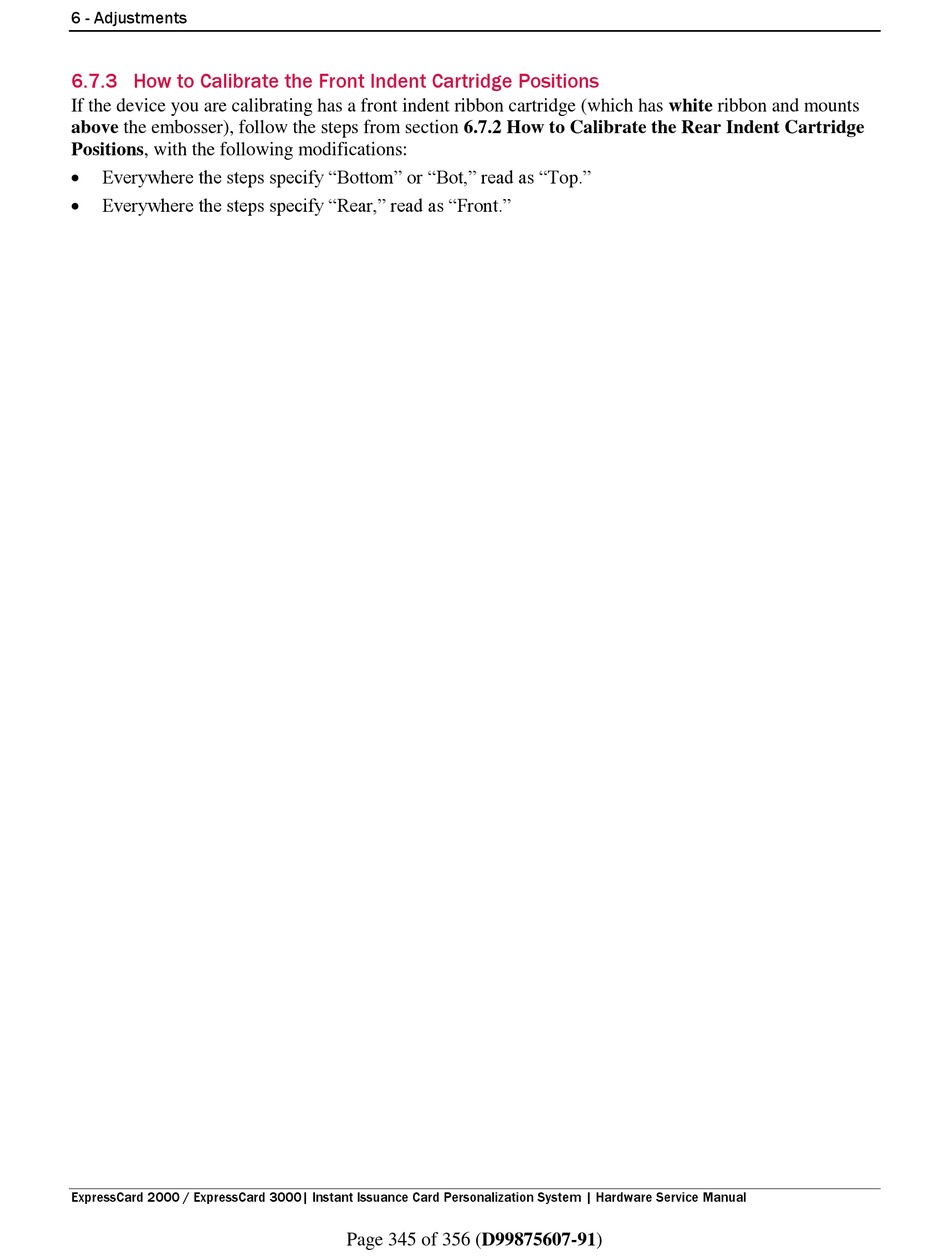

6.7.3 How to Calibrate the Front Indent Cartridge Positions
If the device you are calibrating has a front indent ribbon cartridge (which has white ribbon and mounts
above the embosser), follow the steps from section 6.7.2 How to Calibrate the Rear Indent Cartridge
Positions, with the following modifications:

Everywhere the steps specify "Bottom" or "Bot," read as "Top."

Everywhere the steps specify "Rear," read as "Front."
