5 - Removal and Re-installation
5) If the heater cable does not have connectors like those shown in Figure 5-119, you may be servicing
an older device; contact MagTek Support Services for alternate instructions.
6) If the tipper heater connector is cable tied to the tipper, cut the cable tie and discard it (Figure 5-119
LEFT). If the cable is clipped to the heater, the heater cable and sensor cable from the clips (Figure
5-119 RIGHT).

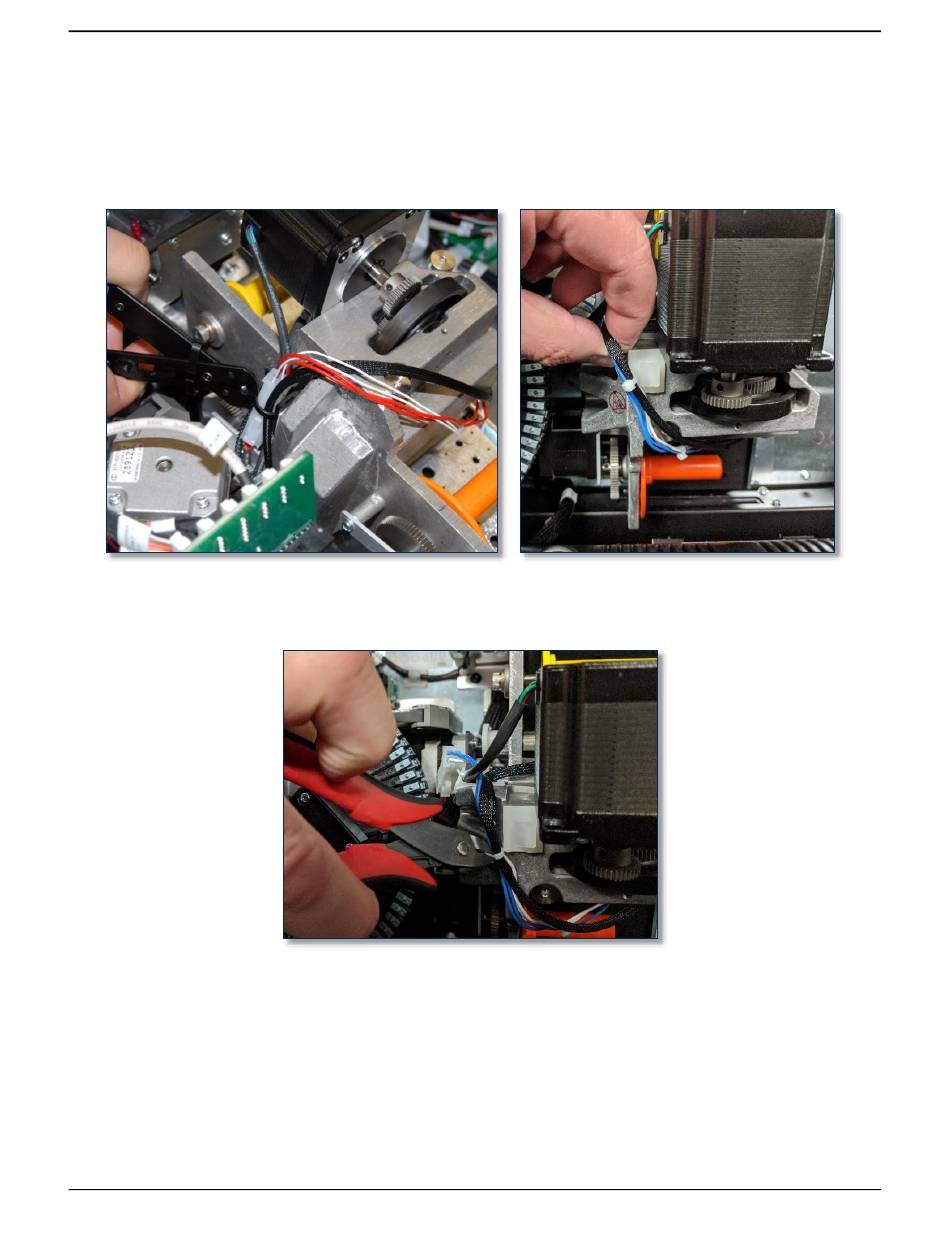

Figure 5-119 - Tipper Heater Cable Tie (TOP VIEW FROM LEFT / TOP VIEW)
7) If the heater cable and sensor cable are held together with a cable tie, cut the cable tie and discard it.
8) Unplug the tipper heater cable.
