5 - Removal and Re-installation

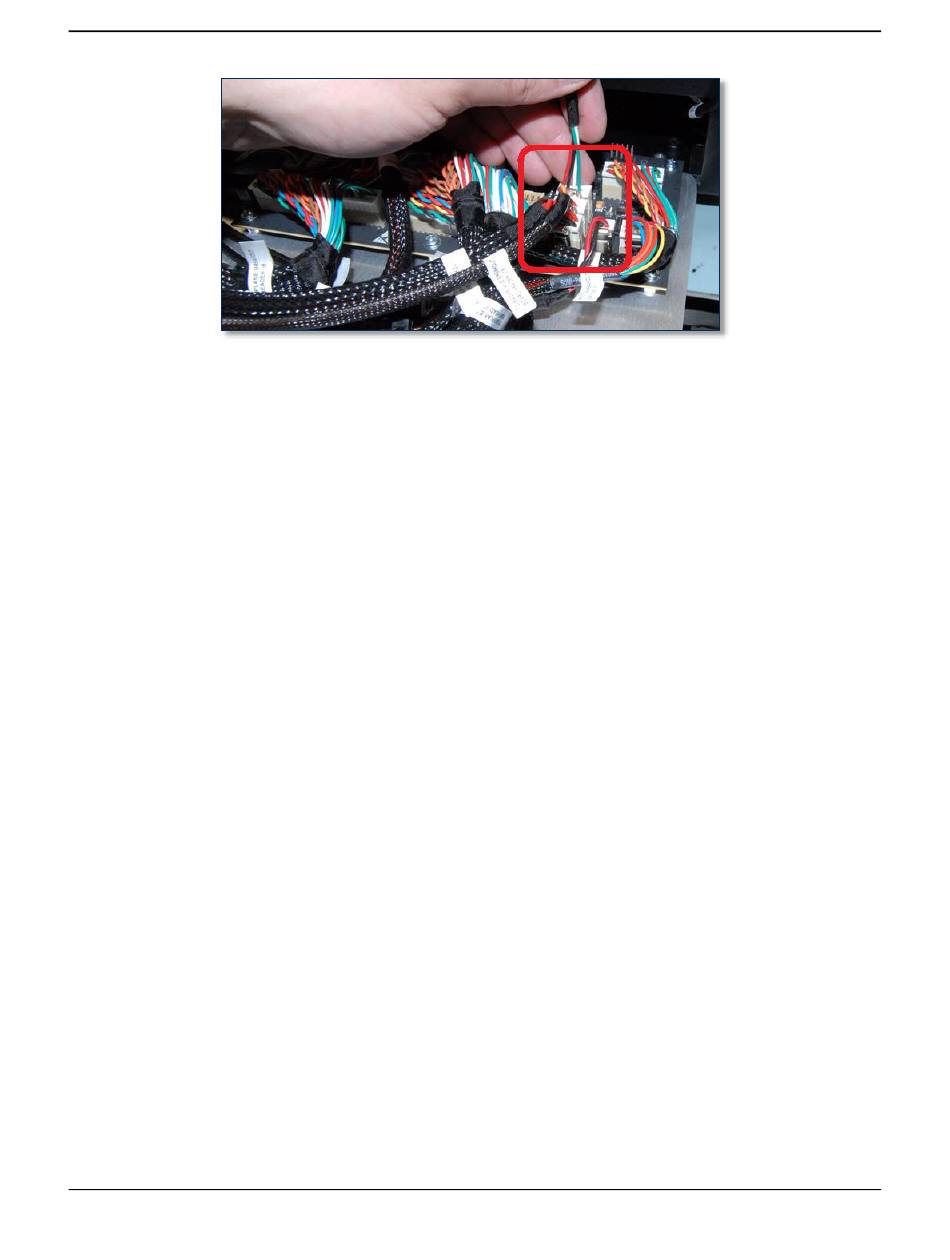

Figure 5-147 - Disconnect Three Cables from Power Controller (LEFT VIEW)
15) Use the finger holes to continue carefully pulling the tray out of the device. Make sure it does not
snag on any cables or other parts. Remove it from the device and set it aside in a static-safe location.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 293 of 356 (D99875607-91)
