5 - Removal and Re-installation

5.10.3 Re-install

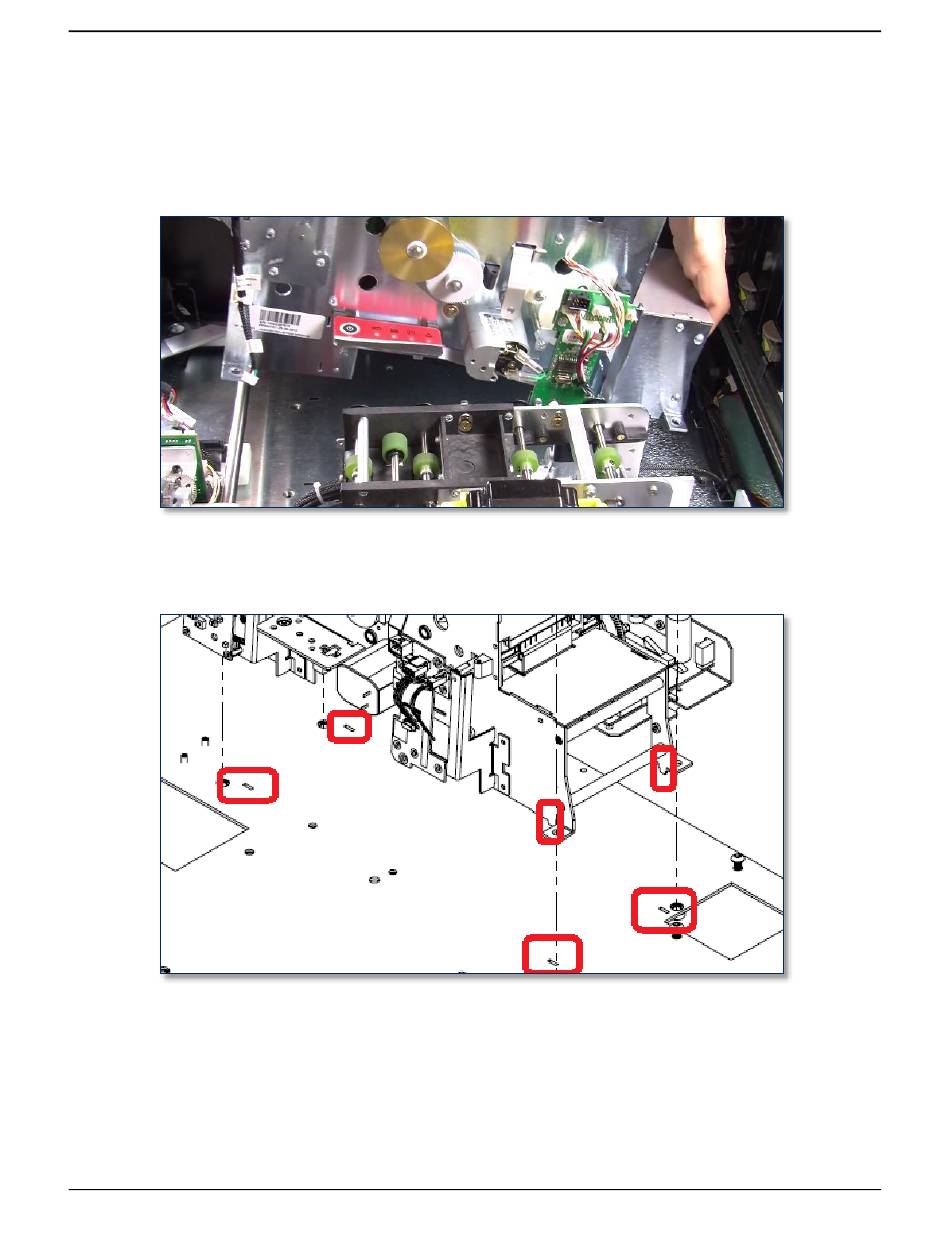

To re-install the image printer module, follow these steps:
1) Clear all cables out of the way to make room on the top deck plate for the replacement image printer.
2) Carefully lower the replacement image printer, tilted slightly downward toward the hopper module,
and line up the screw holes in its base with the screw holes in the top deck plate.
3) Make sure the downward-facing sheet metal tabs in the base of the image printer insert into the
corresponding slots on the top deck plate (see Figure 5-52). You may have to push a bit on the sheet
metal of the image printer's base to line up the tabs.
Figure 5-52 - Seat Image Printer Tabs In Slots (TOP RIGHT VIEW)
4) Use the 5/32" hex wrench to re-fasten the screws and washers that secure the image printer to the top
deck plate (see Figure 5-48).
5) Re-connect the power cable, re-connect the card exit sensor, and re-connect the USB cable to J31.
