5 - Removal and Re-installation

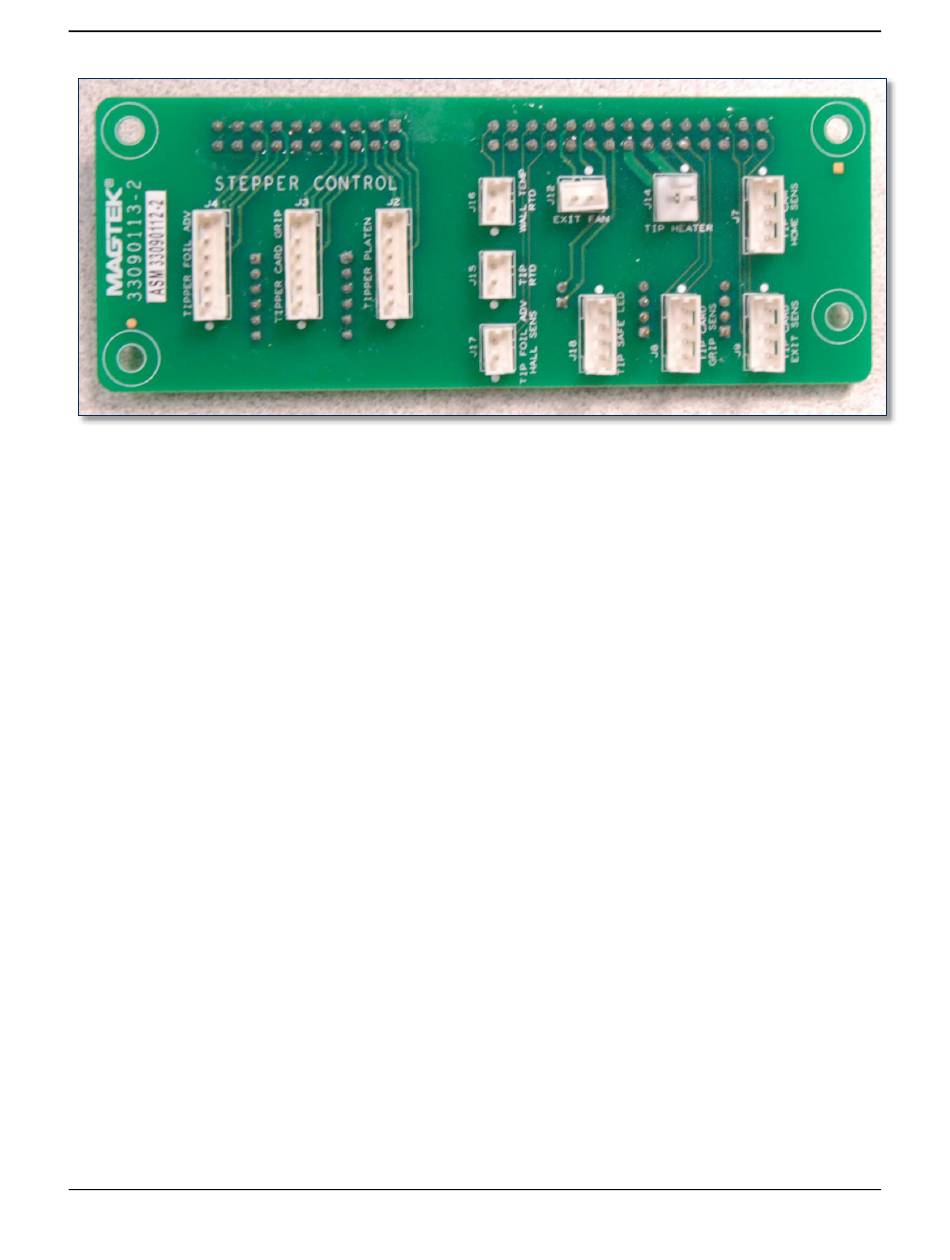

Figure 5-114 - Tipper Circuit Board (FRONT VIEW)
16) Use both hands to remove the tipper module from the device and set it aside, making sure there are no
cables caught on it.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 257 of 356 (D99875607-91)
