2 - Introduction

2.9.2 How to Use the Sensor Utility Page

To check the real-time status of all ExpressCard sensors, use the touchscreen to navigate to
> to open the
Settings Sensors
closed, with all card stock hoppers inserted, and with the device just powered on and ready to process
cards, the
Sensor Utility
for devices with newer firmware and the foil / indent ribbon sensors included.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Sensor Utility
page should match Figure 2-4 for devices with older firmware, or Figure 2-6

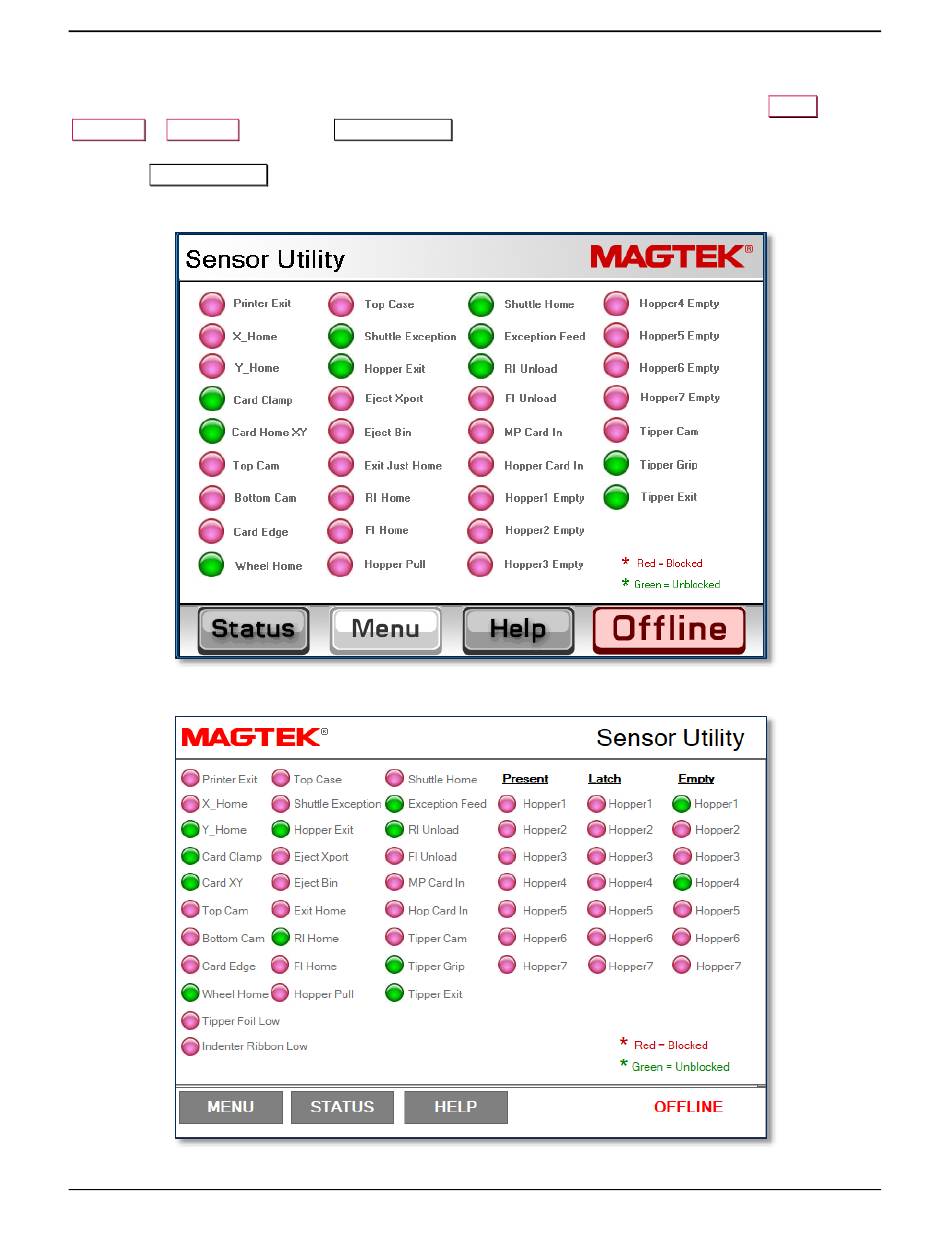

Figure 2-4 - Sensor Utility Page (EC2000)
Figure 2-5 - Sensor Utility Page for EC3000
Page 27 of 356 (D99875607-91)
page. In normal operation with the top access door
Menu >
