Magtek ExpressCard 2000 Hardware Service Manual page 266

5 - Removal and Re-installation
9) Use the 3/32" hex wrench to remove the two screws that hold the tipper sensor in the tipper housing,
and set them aside. On some devices, the sensor may be a different color. The procedure is the same.
10) Carefully pull the tipper sensor out of the right side of the tipper housing, and move it out of the way
by looping it up and over the top of the tipper module.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual

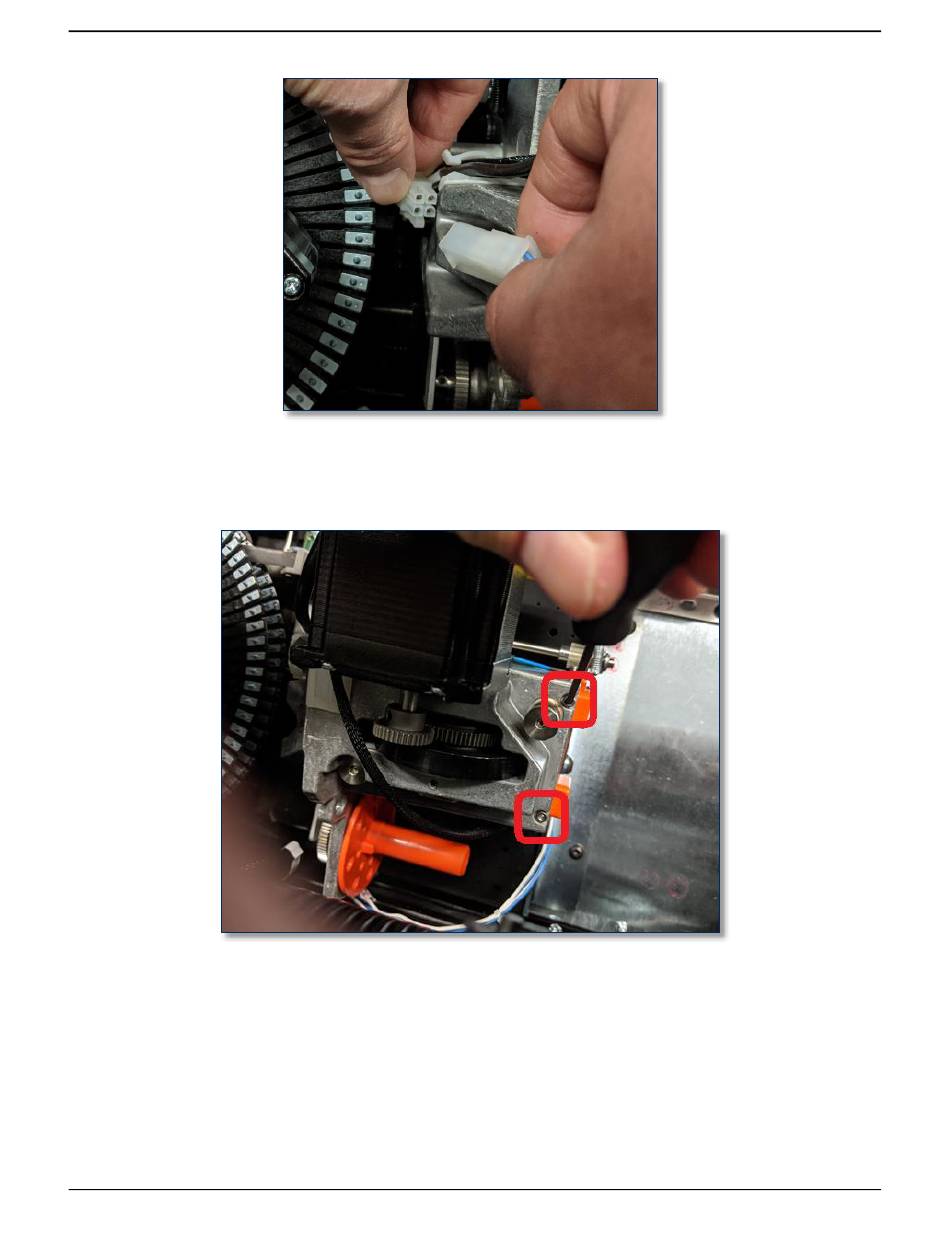

Figure 5-120 - Tipper Heater Plug (TOP VIEW)
Figure 5-121 - Tipper Sensor Screws (TOP VIEW)
Page 266 of 356 (D99875607-91)
