5 - Removal and Re-installation

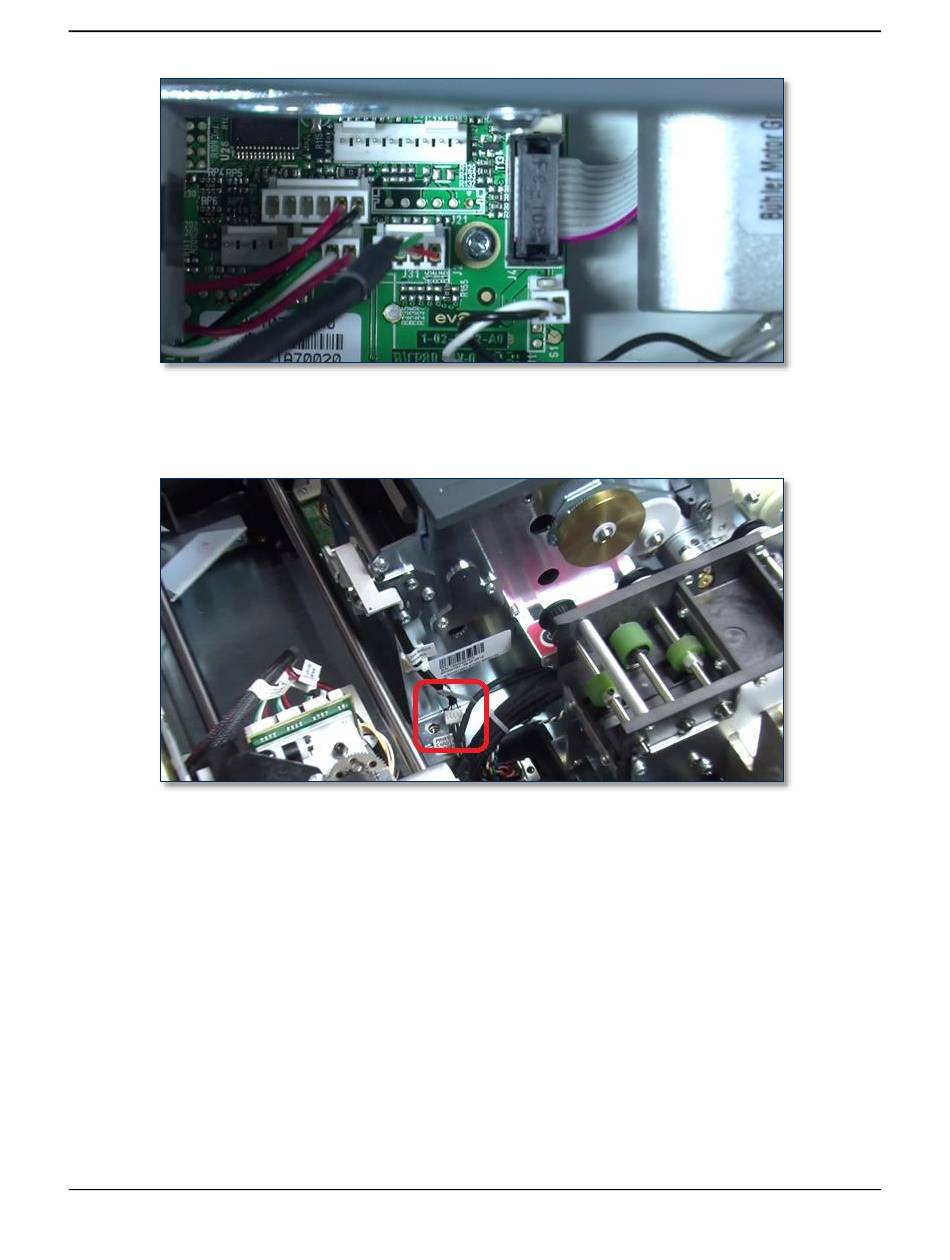

Figure 5-50 - Image Printer USB Cable Connected to J31 (TOP VIEW FROM REAR)
8) Near the front left screw of the image printer, locate the cable labeled Y END SENSOR, shown in
Figure 5-51, and disconnect it.
Figure 5-51 - Image Printer Exit Sensor Connector (TOP LEFT VIEW)
9) Use the 5/32" hex wrench to unscrew the four screws and washers that attach the four corners of the
image printer to the top deck plate (see Figure 5-48).
10) Use both hands to carefully lift the image printer out of the device, making sure no cables catch on it
as you remove it. Set it aside.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 158 of 356 (D99875607-91)
