Remove - Magtek ExpressCard 2000 Hardware Service Manual

5 - Removal and Re-installation

5.33.2 Remove

To remove the power supply, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Open the left side access door by following the steps in section 5.7 How to Remove / Re-install the
Side Access Doors.
3) Take appropriate steps to protect the work surface the ExpressCard is on.
4) With a partner, safely and carefully move the ExpressCard's left side off the edge of the surface it sits
on, only until the four power supply screws on the bottom of the device are exposed (see Figure
5-159, Figure 5-160). Do not move the device any further off the edge than is absolutely necessary.
One person MUST hold the device at all times to keep it stable on the work surface.

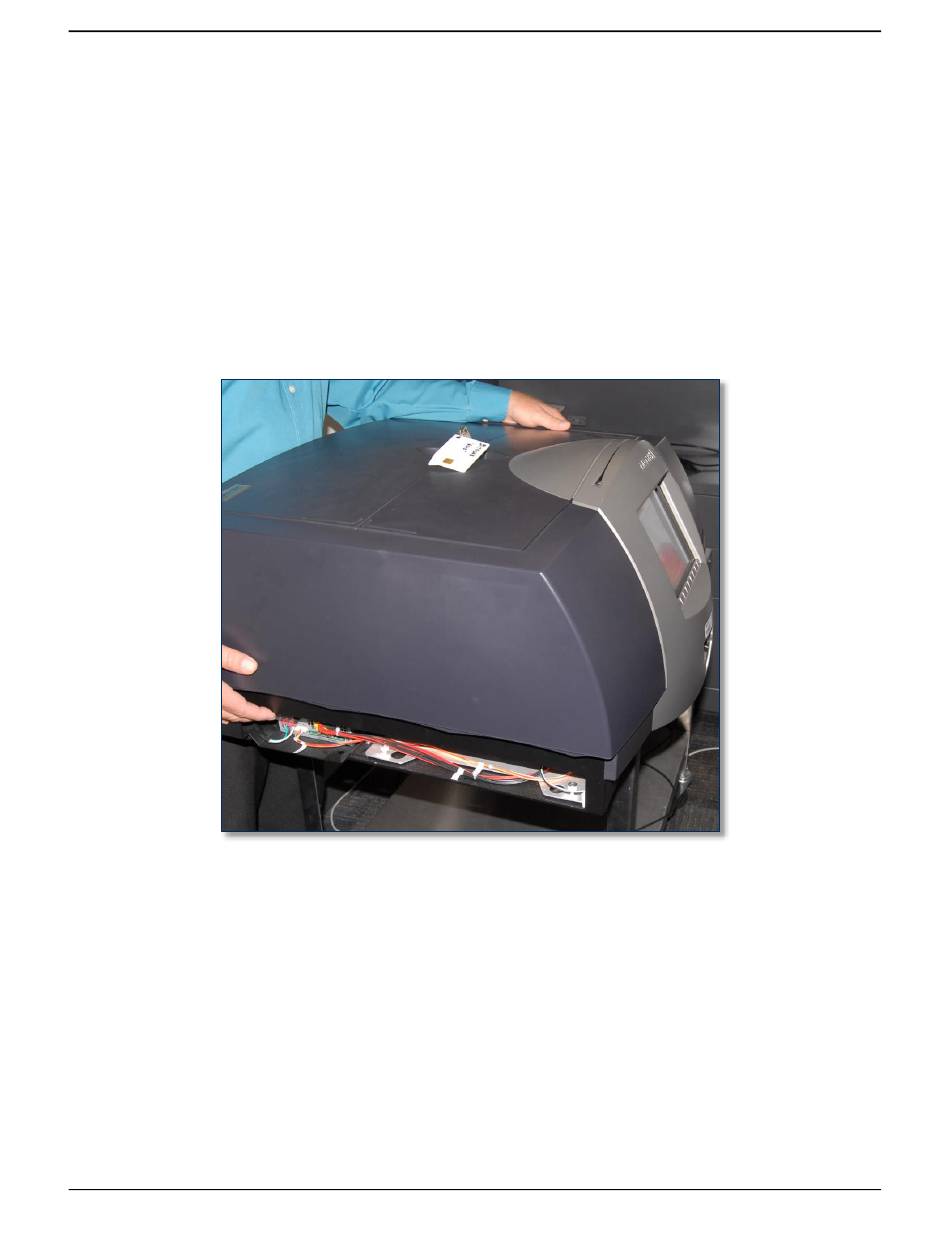

Figure 5-159 – One Person Keeps the Device Stable (LEFT VIEW)
