5 - Removal and Re-installation
5.4

How to Remove / Re-install the Right Side Cover

Approximate time to remove: 45 minutes plus any sub-procedures
Approximate time to re-install: 60 minutes plus any sub-procedures
ExpressCard has a cover which secures the device's contents and provides mount points for the top access
door and touchscreen, and incorporates the card output bin and manual feed slot. This section describes
how to replace just the right side of the device's cover. The procedure for replacing the entire cover is
detailed in section 5.3 How to Remove / Re-install the Cover.

5.4.1 Tools, Materials, and Documents

Part Number
Required
N/A
N/A
Suggested
33011008
33011009
N/A
N/A
N/A
N/A
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual

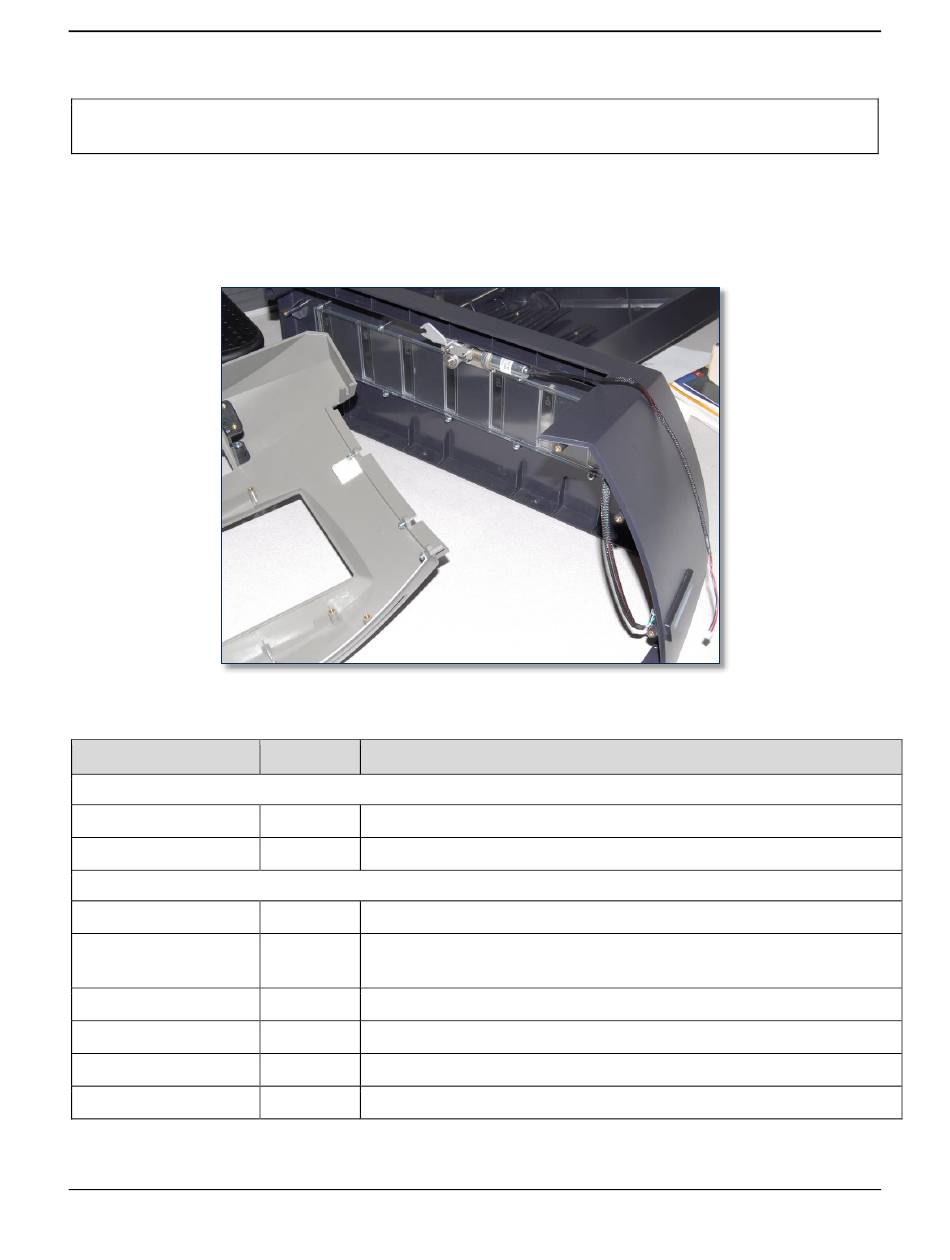

Figure 5-22 - Right Side Cover (TOP LEFT VIEW)
Quantity
1 ea. No. 2 Phillips screwdriver
1 ea. Tools, materials, and documents required for sub-procedures
1 ea. ASM TOOL KIT, FIELD SERVICE, EC2000, EC3000
ASSEMBLY, FIELD SERVICE KIT, SPARE PARTS STARTER,
1 ea.
EC2000, EC3000
1 ea. Flashlight or equivalent
1 ea. Pen or pencil
1 ea. Paper and clipboard
1 ea. Digital camera or smartphone with camera
Page 91 of 356 (D99875607-91)
Description
