5 - Removal and Re-installation

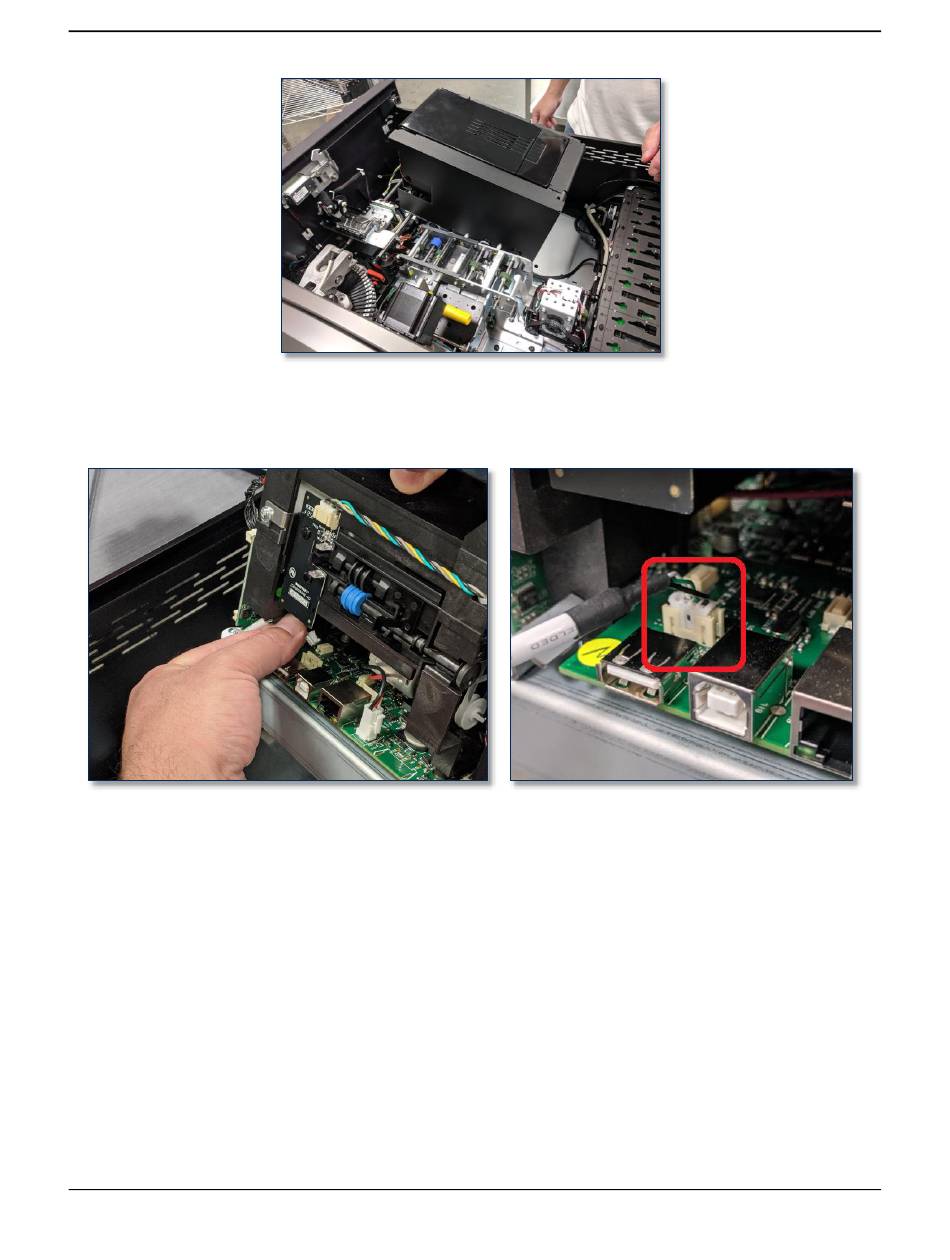

6) Unclip the image printer USB cable from the top deck to give more slack.
7) Reconnect the USB cable, then re-clip it to the top deck plate using a long screwdriver or hex wrench.
You may lift the left side of the image printer to make the connector easier to access.
8) Re-connect the image printer sensor cable, then re-route it below the front lip of the image printer
behind the other cables.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 182 of 356 (D99875607-91)
