5 - Removal and Re-installation

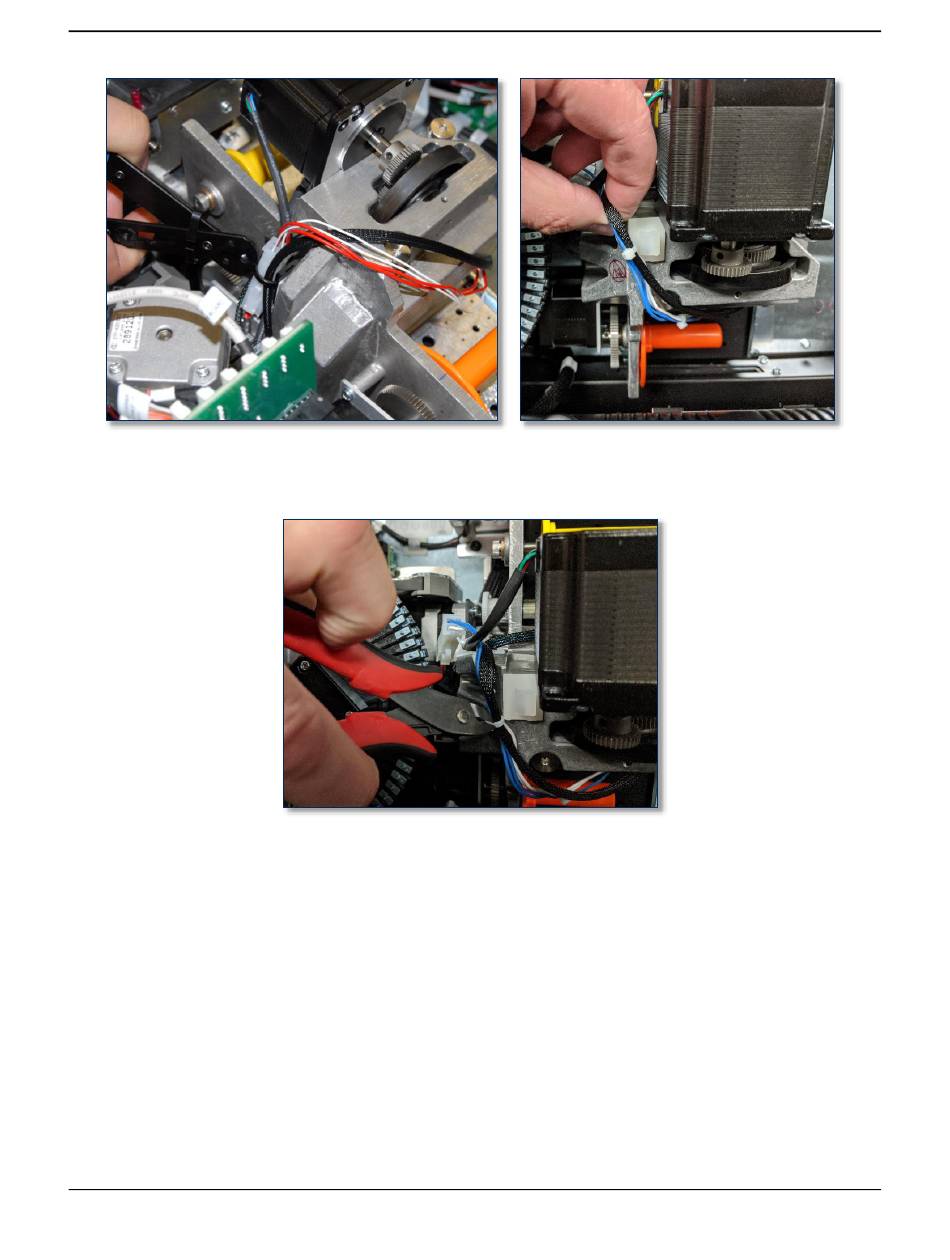

Figure 5-110 - Tipper Heater Cable Tie (TOP VIEW FROM LEFT / TOP VIEW)
10) If the heater cable and sensor cable are held together with a cable tie, cut the cable tie and discard it.
11) Unplug the tipper heater cable.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 254 of 356 (D99875607-91)
