5 - Removal and Re-installation

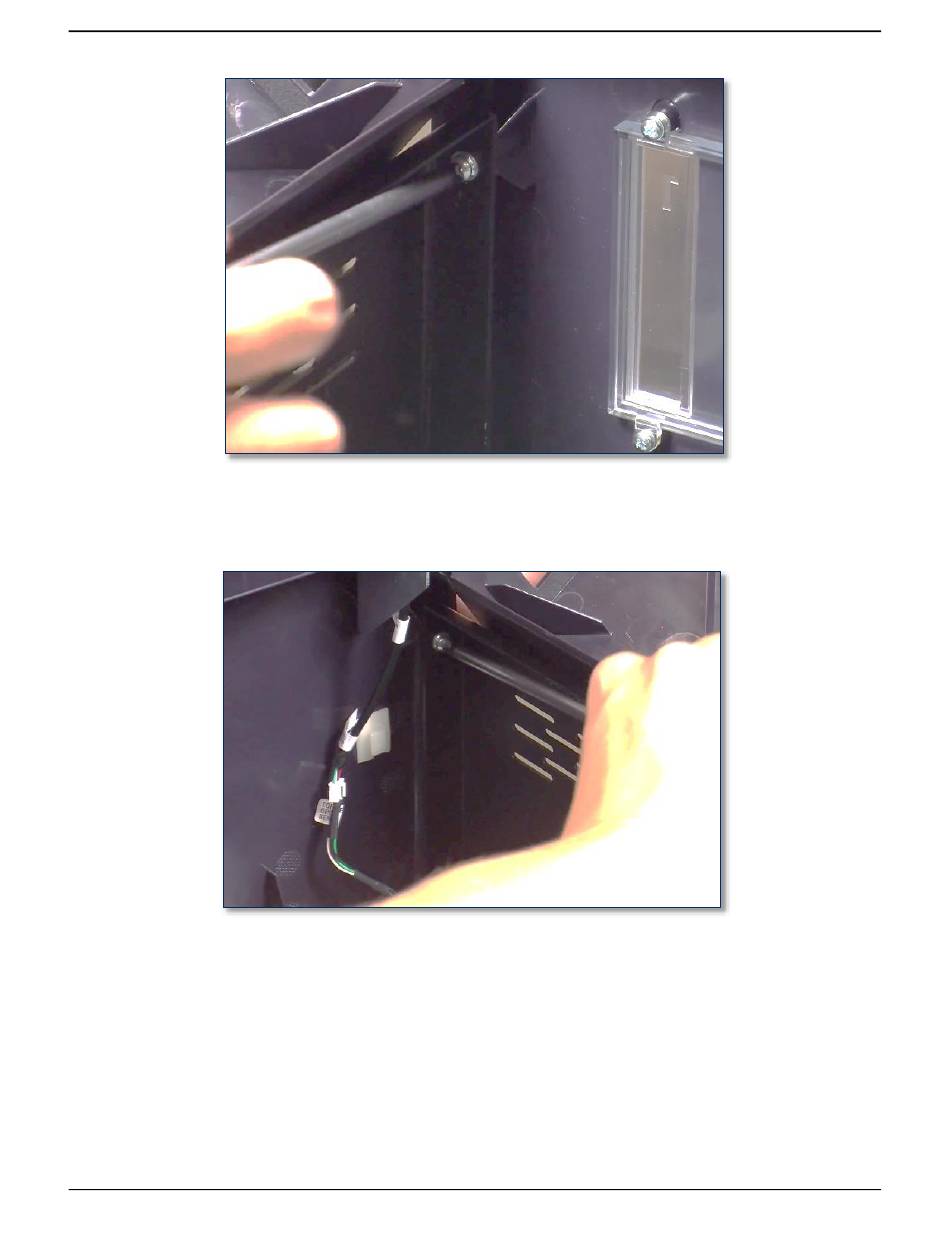

Figure 5-10 - Removing the Right Side Cover Screw Near Top Access Door Hinge (FRONT LEFT VIEW)
3) Use the No. 2 Phillips screwdriver to remove the screw and washer in the rear upper left of the
device, opposite the screw you have already removed (see Figure 5-12).
Figure 5-11 - Removing the Left Side Cover Screw Near Top Access Door Hinge (FRONT RIGHT VIEW)
13) Locate the eight screws and washers, and the four plastic plates that clamp the two sides of the cover
to the top deck plate (see Figure 5-1).
14) Use the No. 2 Phillips screwdriver to remove the screws, washers, and plates and set them aside. If
you have a screwdriver with a long flex extension, consider using that for easier removal. Otherwise,
the front two screws may be easier to remove with the No. 1 Phillips screwdriver.
