UNIVERGE SV8100

System Hardware Manual

This tab allows the user to select various setup options of the VSR.

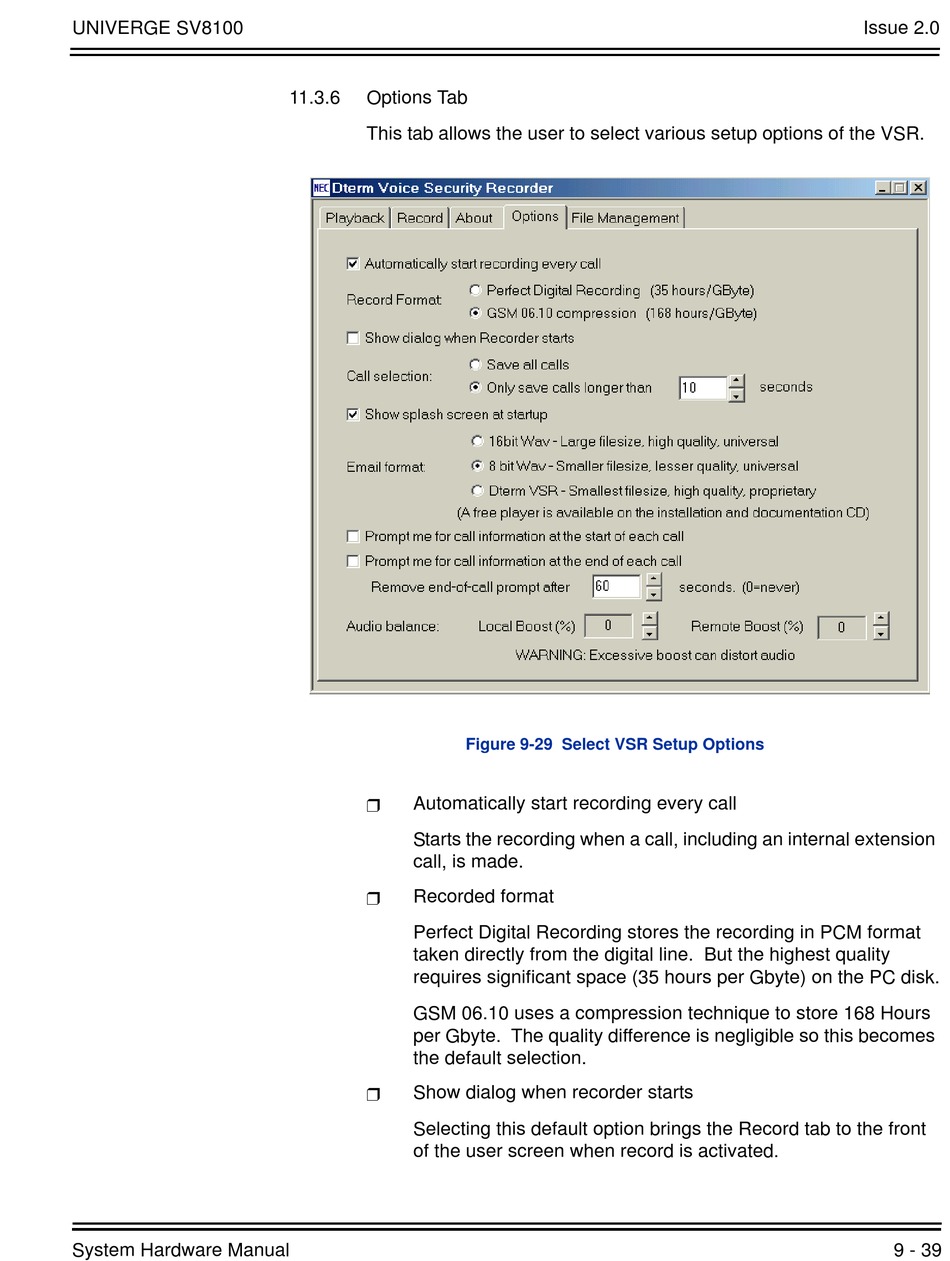

Figure 9-29 Select VSR Setup Options

Automatically start recording every call

Starts the recording when a call, including an internal extension

call, is made.

Recorded format

Perfect Digital Recording stores the recording in PCM format

taken directly from the digital line. But the highest quality

requires significant space (35 hours per Gbyte) on the PC disk.

GSM 06.10 uses a compression technique to store 168 Hours

per Gbyte. The quality difference is negligible so this becomes

the default selection.

Show dialog when recorder starts

Selecting this default option brings the Record tab to the front

of the user screen when record is activated.
