CYLINDER HEAD/VALVES

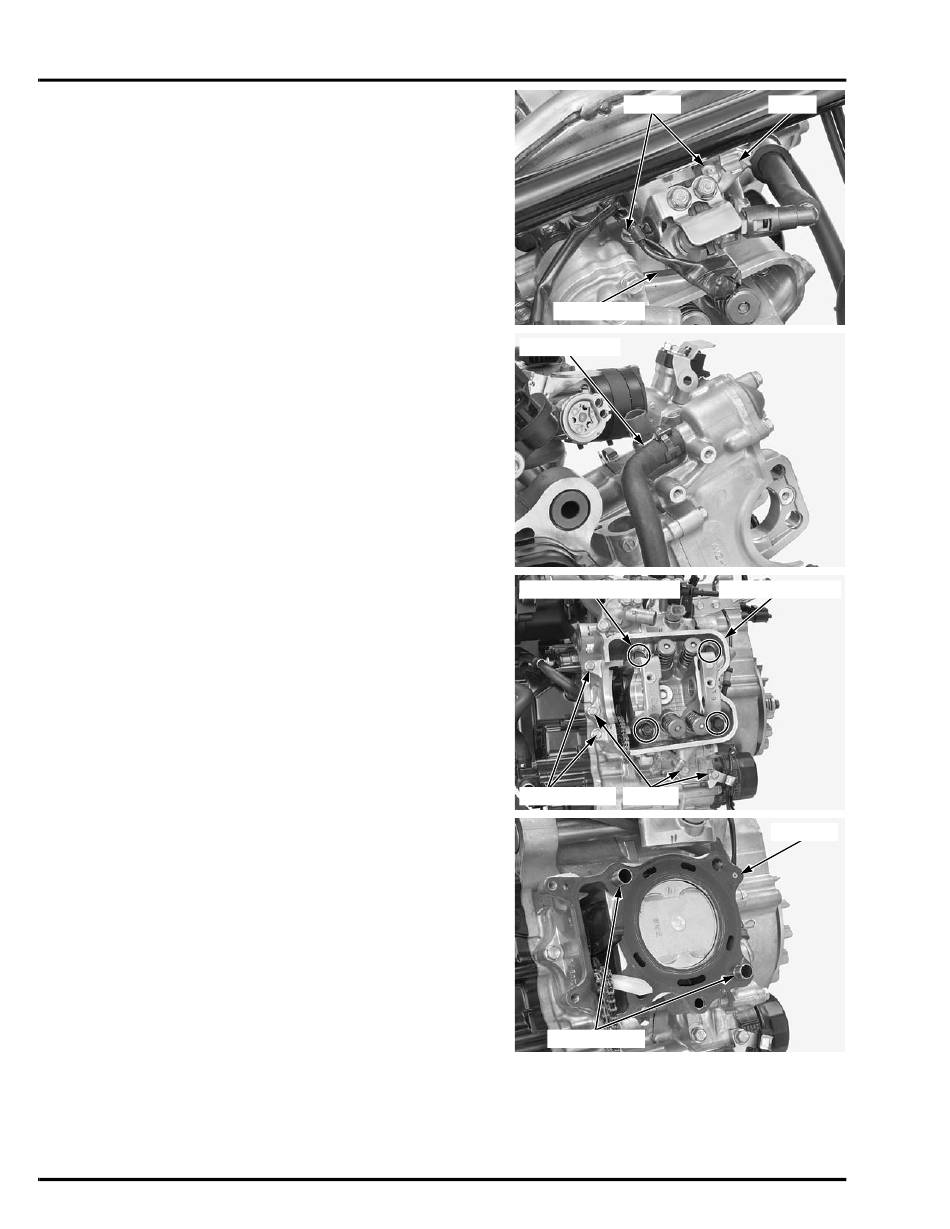

Remove the bolts and O
hose stay.
Remove the insulator.
Disconnect the water hose from the cylinder head.
Loosen the cylinder bolts.
Remove the cylinder head 6 mm bolts.
Remove the cylinder head 9 mm bolt/washers.
Remove the cylinder head.
• Do not strike the cylinder head too hard and do
not damage the mating surface with a any tool
used for leverage.
• Be careful not to damage the mating surface.
Remove the gasket and dowel pins.
9-12
maxiscooter-club.ru
sensor connector/fuel feed
2
BOLTS
INSULATOR
WATER HOSE
9 mm BOLT/WASHERS
6 mm BOLTS
BOLTS
DOWEL PINS
STAY
CYLINDER HEAD
GASKET
