5D2-78 TRANSFER CASE - TOD

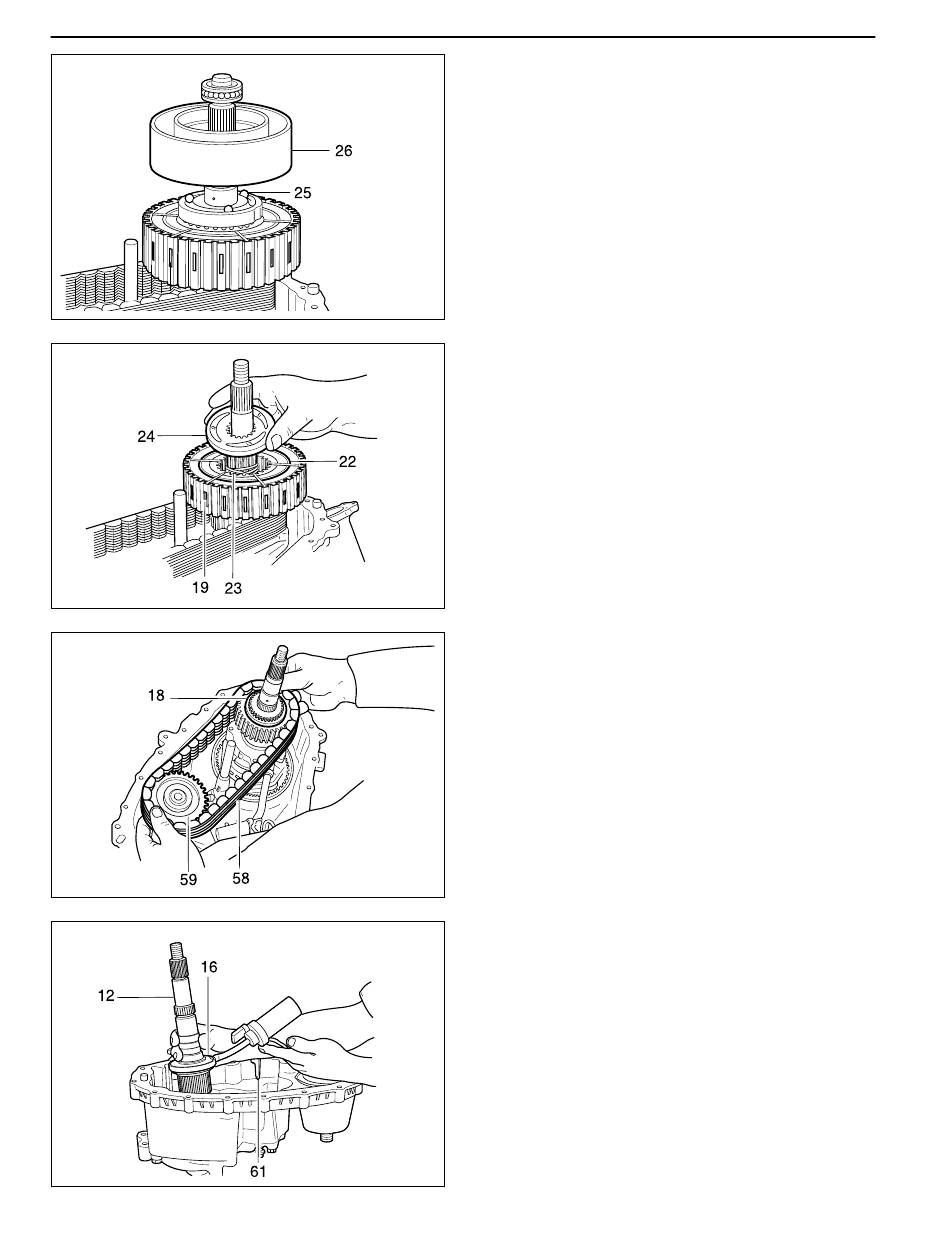

19. Remove bearing assembly from output shaft.
20. Remove the clutch housing from the output shaft.
YAD5D430
21. Remove the balls and apply cam and wave
washer from the output shaft.
22. Remove snap ring from output shaft.
23. Remove clutch pack assembly from output shaft.
YAD5D440
24. Remove the chain, driven sprocket and drive
sprocket as an assembly.
25. Remove thrust washer from output shaft.
YAD5D450
26. Remove the magnet from the slot in the front of the
case bottom.
27. Remove the output shaft and oil pump as an
assembly.
28. If required, to remove the pump from the output
shaft, rotate the pump to align.
29. Pull out the shift rail.
30. Remove the helical cam from the front case.
31. If required, remove the helical cam, torsion spring
and sleeve from the shaft.
YAD5D460
