4F – 4 ANTILOCK BRAKE SYSTEM
feed back to the master cylinder and brake pedal.
Return Pump Motor
The motor drives two pump elements through the ec-
centric wheel on its shaft.
Return Pump
Description: Each pump element consists of a fixed
displacement piston driven by an eccentric on the end of
the eccentric motor. It has two check valves (inlet and
outlet) and is fed with fluid by the low pressure accumu-
lator.
Operation:
Compression stroke: the pump is filled via the inlet ball
seat, then the motor eccentric rotates moving the piston
to displace the fluid. After the pressure build-up closes
the inlet valve the piston displacement increases the
pressure until the outlet ball opens. The outlet pressure
will continue to increase for the rest of the piston stroke.
Return Stroke: The piston retracts, forced by its spring,
as the motor eccentric returns to its low end position.
The pressure at the inlet side of the outlet ball then de-
creases due to the displaced volume and the pressure
difference across this ball holds it closed.
The pressure at the outlet side of the inlet ball seat,
which is set to open at a certain pressure level also de-
creases until this valve opens. With the outlet ball
closed, the pump is filled with additional fluid from the
low pressure accumulator.
The pressure will continue until a stall point is reached
and compression of the piston cannot generate enough
differential pressure anymore to open the outlet ball
seat.

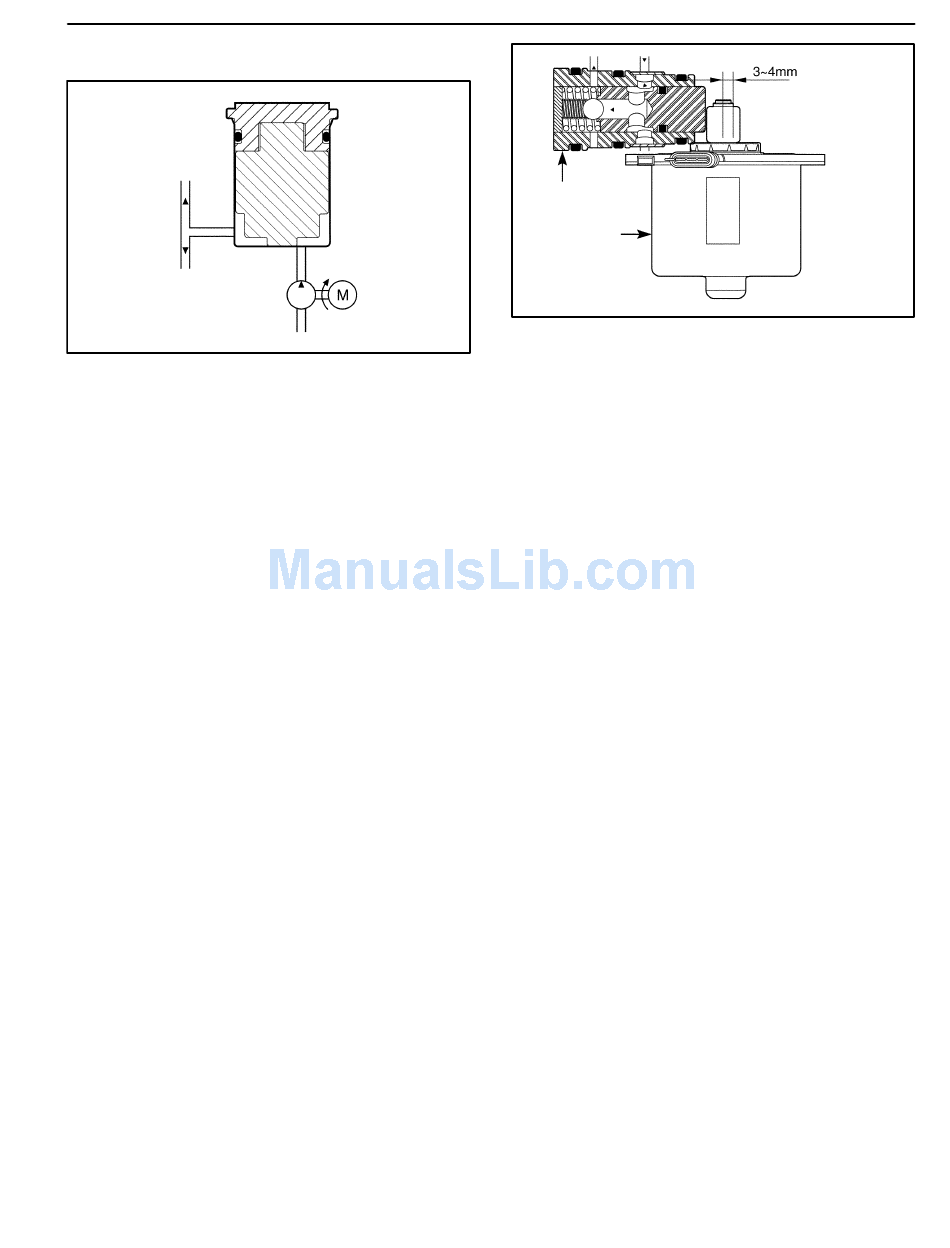

Return Pump
Return Pump
Motor
D107E005
EBCM (ELECTRONIC BRAKE
CONTROL MODULE)
Notice: There is no serviceable. The EBCM must be re-
placed as an assembly.
The EBCM is attached to the hydraulic unit in the engine
compartment. The controlling element of ABS is a mi-
croprocessor-based EBCM. Inputs to the system in-
clude the four wheel speed sensors, the stoplamp
switch, the ignition switch, and the unswitched battery
voltage. There is an output to a bi-directional serial data
link, located in pin M of the assembly line diagnostic link
(ALDL), for service diagnostic tools and assembly plat
testing.
The EBCM monitors the speed of each wheel. If any
wheel begins to approach lockup and the brake switch is
closed (brake pedal depressed), the EBCM controls the
dump valve to reduce brake pressure to the wheel ap-
proaching lockup. Once the wheel regains traction,
brake pressure is increased until the wheel again begins
to approach lockup. The cycle repeats until either the
vehicle comes to a stop, the brake pedal is released or
no wheels approach lockup.
Additionally, the EBCM monitors itself, each input (ex-
cept the serial data link), and each output for proper op-
eration. If it detects any system malfunction, the EBCM
will store a DTC in nonvolatile memory (DTCs will not
disappear if the battery is disconnected).
