TAILLAMPS ASSEMBLY

Removal Procedure
1. Disconnect the negative battery cable.
2. Open the tailgate.
3. Remove the luggage compartment wheelhouse trim.
Refer to Section 9G, Interior Trim.
4. Disconnect the electrical connector.

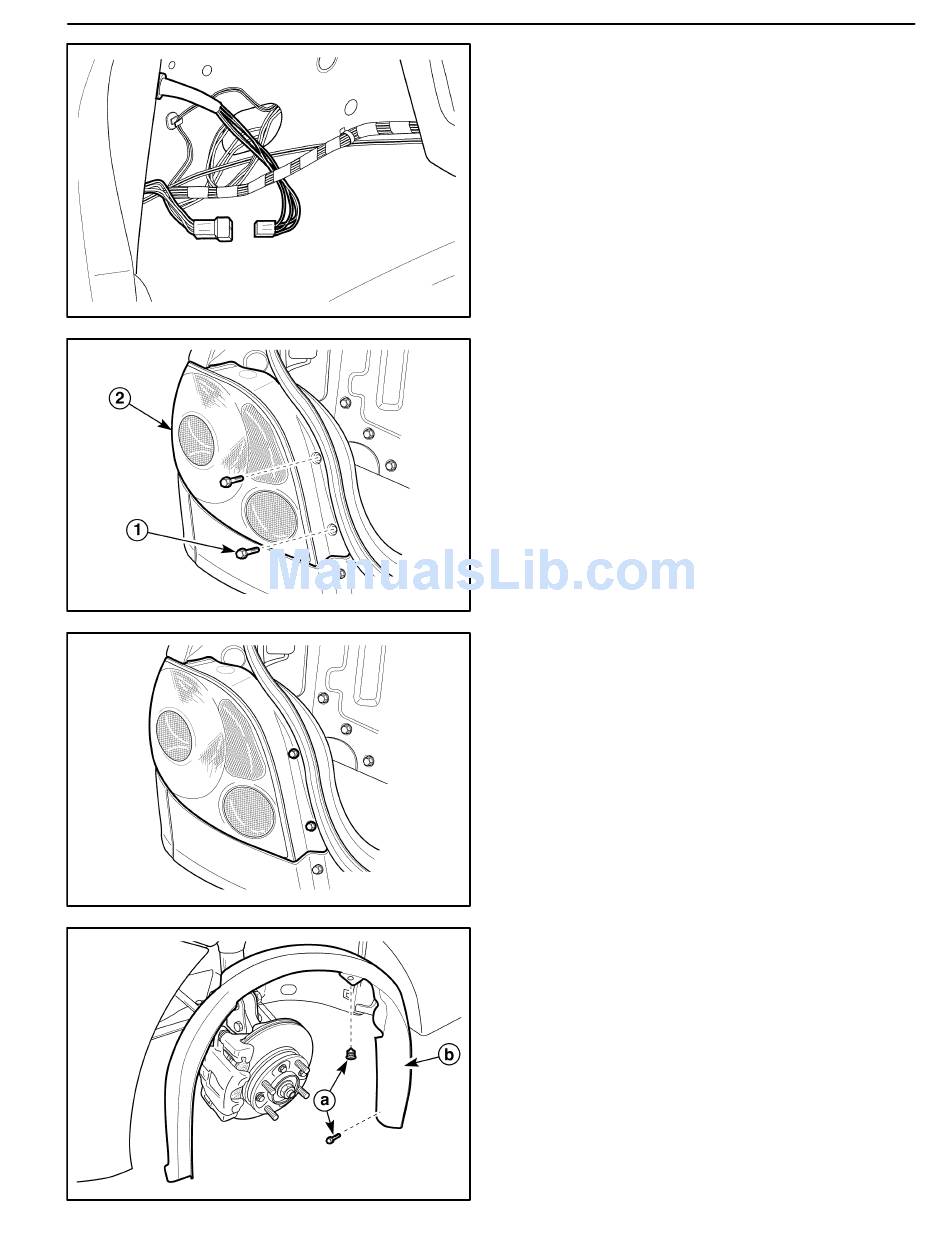

D109D507
5. Remove the taillamp assembly.
D Remove the screws (1).
D Remove the taillamp (2).
D19D508B
Installation Procedure
1. Install the taillamp assembly with the screws.
2. Connect the electrical connector.
3. Install the luggage compartment wheelhouse trim.
Refer to Section 9G, Interior Trim.
4. Connect the negative battery cable.
D19D509A

FRONT FOG LAMP

Removal Procedure
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the front wheels.
4. Remove the front wheel house splash shield.
D Remove the clip and bolts.
a. Bolt and clips.
D Remove the wheel house splash shield.
b. Splash shield.
D19C501A
LIGHTING SYSTEMS 9B – 9
