1G – 8 ENGINE EXHAUST
REAR MFFLER

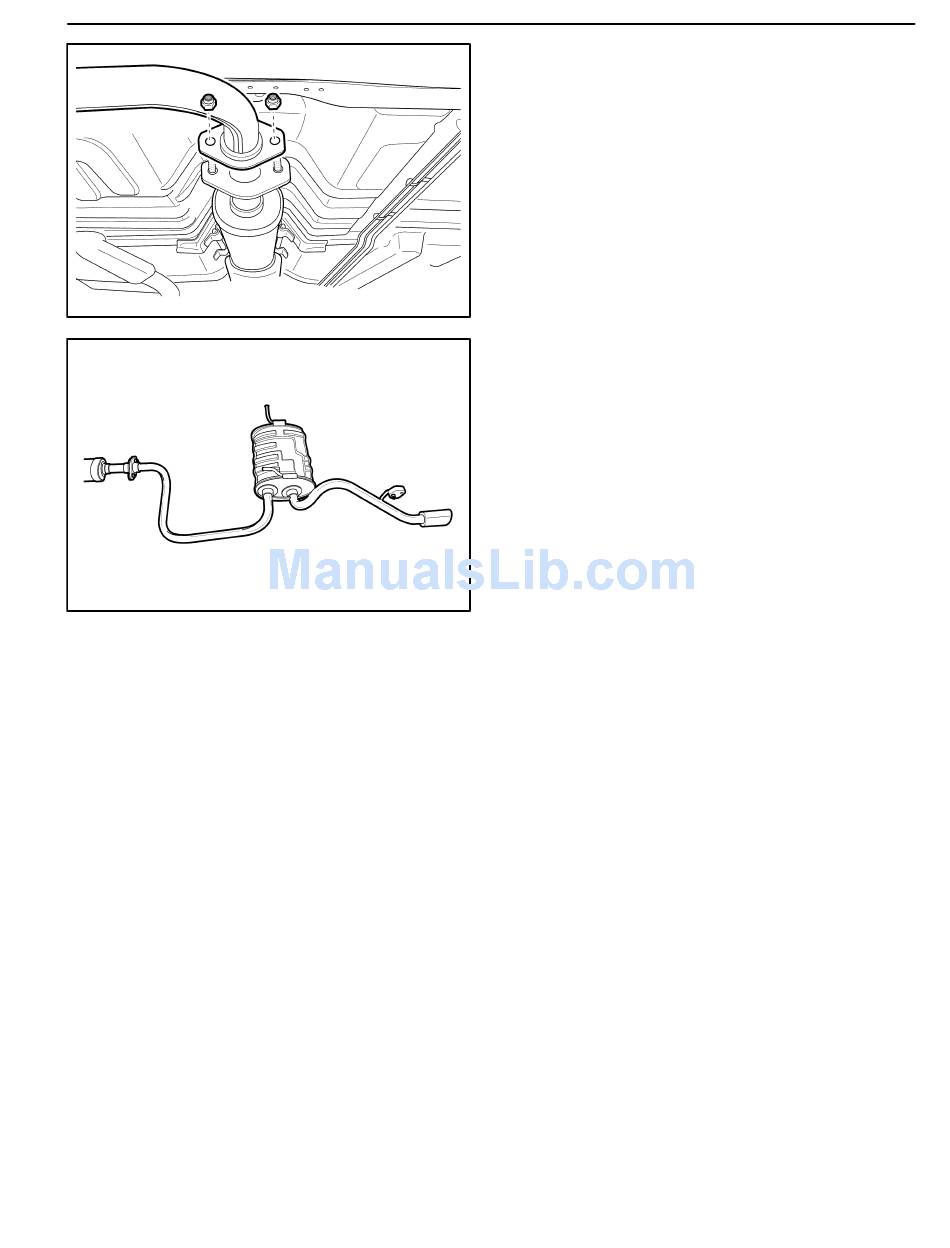

Removal Procedure
1. Remove the front muffler-to rear muffler nuts.
Tighten
Tighten the nuts to 25–35 NSm (18–25 lb-ft).
2. Detach the rear muffler from the rubber hangers.
MAA1G030
3. Remove the rear muffler.
4. Installation should flow the removal procedure in re-
verse order.
MAA1G040
DAEWOO M-150 BL2
